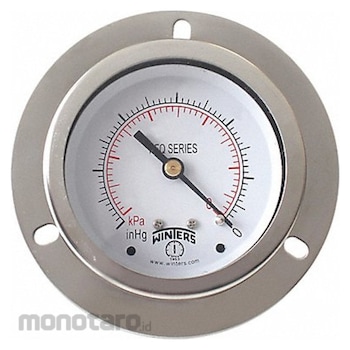

WINTERS Industrial & Process Panel-Mount Pressure Gauge
#Grup produk P109669618
Spesifikasi
| Accuracy Scale | Full Scale |
|---|---|
| Application | Compressors; Hydraulics; Machinery; Motors; Pneumatics; Pumps |
| Bezel Gasket Material | Silicone |
| Bezel Material | 304 Stainless Steel |
| Bezel Mounting Type | Crimped |
| Blowout Safety Back | No |
| Brand | WINTERS |
| Case Color | Metallic |
| Case Construction | Welded Joint |
| Case Material | Stainless Steel |
| Compatible Process Media | Air; Water |
| Dial Color | White |
| Dial Face Material | Aluminium |
| Dry Dampening Feature | None |
| Field Fillable | Yes |
| Freeze Resistant Movement | No |
| Gauge Case Liquid | None |
| Gauge Case Material | 304 Stainless Steel |
| Gauge Mounting Type | Front Flange |
| Gauge Wetted Parts | Brass / Bronze |
| Hazardous Location Rating | Not Rated |
| IP/NEMA Rating | IP65 |
| Includes Calibration Certificate | No |
| Includes Mounting Hardware | No |
| Includes Vent Plug | Yes |
| Lens Material | Polycarbonate |
| Lens Material - Gauge | Plastic |
| Liquid-Filled Case | No |
| Mounting Type | Front Flange |
| Non-Sparking | No |
| Operating Temperature Range Ambient (°F) | -40 to 200 |
| Over-Pressure Limit | 25% |
| Panel Mountable | Yes |
| Pointer Color | Black |
| Pointer Material | Aluminium |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Process Connection Gender | Male |
| Process Connection Location | Center Back |
| Process Connection Type | NPT |
| Process Temperature Range (°F) | -40 to 200 |
| Removable Bezel | Yes |
| Scale Type | Dual |
| Secondary Scale Units | kPa |
| Sensor Type | Bourdon Tube |
| Series | PFQ |
| Standards | ASME; CRN |
| Vibration Resistance | Field-Fillable |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These panel-mount gauges have non-ferrous brass/bronze wetted parts and a threaded connection that threads into a process, pipe, or tank; the flange or ring is secured to a panel. Also known as flush-mount gauges, the flange is positioned near or as part of the bezel so they can be secured flush to the panel without protruding from it.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
K4541 Panel-Mount Pressure Gauge Nominal Dial Size 2 1/2 in Accuracy +/-1.5 Percent Gauge Case Material 304 Stainless Steel Process Connection Type NPT Process Connection Gender Male Lens Material Polycarbonate Process Connection Size 1/4 in Field Fillable Yes Process Connection Location Center Back Case Color Metallic IP/NEMA Rating IP65 Primary Pressure Range 0 to 60 Dry Dampening Feature None Vibration Resistance Field-Fillable Dial Color WhiteUlasan Produk
