PIC GAUGES HVAC & Boiler Gauge
#Grup produk P109669450
Sebelum PPN:
Rp2.399.900 - Rp2.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 41112403 |
|---|---|
| Accuracy | ±3-2-3% |
| Accuracy Grade | ASME B40.100 Grade B |
| Accuracy Scale | Mid-Scale |
| Application | Boilers |
| Brand | PIC GAUGES |
| Case Color | Silver |
| Case Depth (inch) | 1.29 |
| Case Diameter (inch) | 3.21 |
| Case Height (inch) | 3.21 |
| Case Material | Steel |
| Case Shape | Round |
| Compatible Process Media | Water |
| Dial Color | White |
| Gauge Accuracy Grade | Grade B - Commercial |
| Gauge Case Material | Steel |
| Gauge Wetted Parts | Copper |
| Hazardous Location Rating | Not Rated |
| Lens Material | Glass |
| Lens Material - Gauge | Glass |
| Mounting Type | Stem-Mount |
| Neck Extension (inch) | 0.32 |
| Nominal Dial Size (inch) | 3 |
| Operating Temperature Range Ambient (°F) | -30 to 180 |
| Pointer Material | Aluminium |
| Pointer Style | Black |
| Pressure Gauge Type | Boiler Gauge |
| Pressure Range Type | Pressure |
| Primary Scale Units | psi |
| Process Connection (inch) | 1/2 NPT Male |
| Process Connection Gender | Male |
| Process Connection Size (inch) | 1/2 |
| Process Connection Type | NPT |
| Scale Type | Dual |
| Secondary Scale Units | ft wc |
| Sensor Material | Copper Alloy |
| Series | TRI-HD |
| Socket Material | Copper Alloy |
| Stem Diameter (inch) | 0.32 |
| Stem Extension Length (inch) | 0.32 |
| Stem Insertion Length (inch) | 2 |
| Stem Material | Copper Alloy |
| Temperature Accuracy | ±3-2-3% |
| Temperature Range (°C) | 20° to 160 |
| Temperature Range (°F) | 70 to 320 |
| Temperature Scale Range (°C) | 20 to 160 |
| Temperature Scale Range (°F) | 70 to 320 |
| Temperature Scale Units | °C; °F |
| Wetted Parts Material | Copper Alloy |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

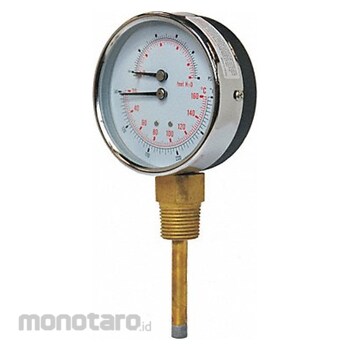

Tridicator boiler gauges measure pressure and temperature with separate scales with separate pointers. Their threaded connection on the stem houses a bimetal temperature element which is used to insert the gauge into the process. They are available in square and round cases. They are commonly used in boilers and other hydronic systems.
Feature
Round Boiler Gauge Boiler Gauge Nominal Size 3 in Gauge Connection Location Bottom Gauge Connection Type MNPT Gauge Connection Size 1/2 in 0 to 200 psi Gauge Accuracy +/-3-2-3 Percent Basic Gauge Case Material Steel Basic Gauge Wetted Parts Copper Basic Gauge Lens Material Plastic 80 Degrees to 320 Degrees Boiler Gauge Temp Range - F Temp Range (C) 20 Degrees to 160 Degrees Case Material Steel Case Color Silver Socket Material Copper Alloy Tube Material Copper AlloyUlasan Produk
