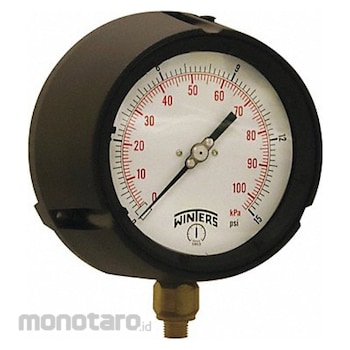

WINTERS High-Accuracy Dial Process Pressure Gauge
#Grup produk P109669256
Sebelum PPN:
Rp2.899.900 - Rp3.299.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 23151820 |
|---|---|
| Accuracy | ±0.5% |
| Accuracy Grade | ASME B40.100 Grade 2A |
| Accuracy Scale | Full Scale |
| Application | Chemical Industries; Oil and Gas Industry; Power Industries; Process Industries |
| Bezel Gasket Material | Silicone |
| Bezel Material | Phenolic |
| Blowout Safety Back | Yes |
| Bolt Circle Diameter (inch) | 5.39 |
| Brand | WINTERS |
| Case Color | Black |
| Case Construction | Solid Wall |
| Case Depth (inch) | 3.4 |
| Case Diameter (inch) | 5.835 |
| Case Material | Phenolic |
| Cleaned for Oxygen Service | No |
| Compatible Process Media | Chemicals; Highly Corrosive Media |
| Dial Color | White |
| Dial Face Color | White |
| Dial Face Material | Aluminium |
| Dry Dampening Feature | None |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade 2A - Process |
| Gauge Case Material | Phenolic |
| Gauge Wetted Parts | Brass / Bronze |
| Hazardous Location Rating | Not Rated |
| IP/NEMA Rating | IP65 |
| Includes Calibration Certificate | No |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Lens Material | Safety Glass |
| Lens Material - Gauge | Safety Glass |
| Mounting Type | Stem-Mount |
| Movement Material | 304 Stainless Steel |
| Nominal Dial Size (inch) | 4-1/2 |
| Non-Sparking | No |
| Over-Pressure Limit | 25% |
| Panel Mount Characteristics (inch dia) | 3 0.240 Holes on 5.390 Bolt Circle |
| Panel Mountable | No |
| Pointer Characteristics | Micrometer Adjustable |
| Pointer Color | Black |
| Pointer Material | Aluminium |
| Pressure Gauge Type | Process Pressure Gauge |
| Pressure Range Type | Pressure |
| Primary Scale Units | psi |
| Process Connection (inch) | 1/4 NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size (inch) | 1/4 in |
| Process Connection Type | NPT |
| Process Temperature Range (°F) | -40 to 250 |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Scale Units | kPa |
| Sensor Material | Phosphor Bronze |
| Sensor Type | Bourdon Tube |
| Series | PPC |
| Socket Material | Brass OT58 |
| Standards | ASME; CRN |
| Wetted Parts Material | Phosphor Bronze |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These dial process pressure gauges have brass/bronze wetted parts. They are commonly used compatible process media at low temperatures, at or below 140°F (60°C). Liquid-filled gauges have a case that"™s filled with glycerin or a similar liquid that reduces the flutter of the pointer. Select gauges are built with a proprietary dry case that offers resistance to vibration and pulsation.
Feature
Process Pressure Gauge Nominal Dial Size 4 1/2 in Accuracy +/-0.5 Percent Gauge Case Material Phenolic Process Connection Type NPT Process Connection Gender Male Lens Material Safety Glass Process Connection Size 1/4 in Field Fillable No Process Connection Location Bottom Case Color Black IP/NEMA Rating IP65 Primary Pressure Range 0 to 15 Dry Dampening Feature None Vibration Resistance Liquid-Filled Dial Color White Pressure Gauge Type Process Pressure GaugeProduk Terpopuler
