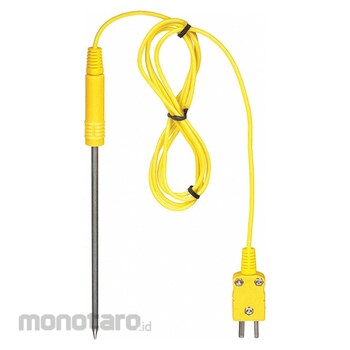

UEI TEST INSTRUMENTS Handheld Thermocouple Prob
#Grup produk P109669113
Spesifikasi
| UNSPSC | 42182209 |
|---|---|
| Brand | UEI TEST INSTRUMENTS |
| Cable Length (ft) | 4 |
| Cable Material | Fluoroplastic Coated |
| Connector Type | Mini Plug |
| For Air | Yes |
| For Application | AirLiquid |
| For Gases | Yes |
| For Liquids and Gels | Yes |
| Handle Material | Plastic |
| Handle Type | Straight Handle |
| Head Material | Stainless Steel |
| Junction Type | Grounded |
| Maximum Temperature (°C) | 510 |
| Maximum Temperature (°F) | 950 |
| Maximum Wire Gauge (AWG) | 20 |
| Minimum Temperature (°C) | -40 |
| Minimum Temperature (°F) | -40 |
| Opening Diameter (inch) | 1/8 |
| Probe Bend | Straight |
| Probe Diameter (inch) | 0.125 |
| Probe Length (inch) | 6 |
| Probe Sheath Material | Stainless Steel |
| Probe Size (inch) | 1/8x6 |
| Product Type | Immersion Temperature Probe |
| Response Time (s) | 2 |
| Sensor Type | Thermocouple |
| Temperature Range (°C) | -40 to 510 |
| Temperature Range (°F) | -40 to 950 |
| Thermocouple Type | Type K |
| Tip Style | Pointed |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These handheld thermocouple probes measure the temperatures of soft and semi-frozen materials. Also known as insertion probes, they’re built with short or long straight sensors with a sharp or reduced-diameter tip. The pointed tip is used to penetrate and measure the internal temperature of materials. They are commonly used to measure the temperature of molten plastics and rubbers and for recording temperatures in food production, storage, and transportation applications.
Feature
Immersion Temperature Probe Type K Grounded For Application Air Liquid Mini Plug Probe Size 1/8 in x 6 in Cable Length 4 ft -40 Degrees to 950 Degrees F/-40 Degrees to 510 Degrees C ThermocoupleUlasan Produk
