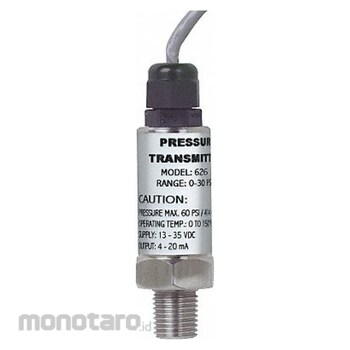

Dwyer General Purpose Pressure Transmitter
#Grup produk P109668673
Sebelum PPN:
Rp5.299.900 - Rp9.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 41111938 |
|---|---|
| Brand | DWYER |
| Explosion/Fire Proof | No |
| Intrinsically Safe | No |
| Maximum Operating Temperature (°F) | 200 |
| Minimum Operating Temperature (°F) | 0 |
| Minimum Pressure (PSI) | 0 |
| NIST Traceable Certificate | No |
| Number of wires | 2 |
| Output (mA DC) | 4 to 20 |
| Overall Height (inch) | 3.5 in |
| Pressure Units | psig |
| Process Connection (inch) | 1/4 Male NPT |
| Process Connection Gender | Male |
| Process Connection Type | NPT |
| Response Time (msec) | 300 |
| Standards | CE; NSF; UL Listed |
| Type of Pressure | Gauge |
| Weight (oz) | 10 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These pressure transmitters have a threaded process connection and pigtail-style bare wire leads with an integral cable.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
K4702 Pressure Transmitter Minimum Pressure 0 psi Maximum Pressure 150 psi Electrical Connections Cable Wire Leads Output 4 to 20mA DC Accuracy +/-0.25 Percent of Full Scale Number of Wires 2 Process Connection Gender Male Process Connection Size 1/4 in Process Connection Type NPT Power Required 10 to 30V DC NEMA Rating NEMA 4X IP Rating IP66 Series 626 Wiring Entry Cable Gland Maximum Operating Temperature 200 Degrees F Minimum Operating Temperature 0 Degrees FUlasan Produk
