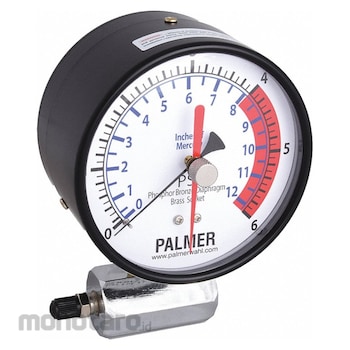

Wahl Gas & Water Line Pressure Test Gauge & Kit
#Grup produk P109668433
Spesifikasi
| UNSPSC | 41112403 |
|---|---|
| Accuracy | ±1.0% |
| Accuracy Grade | ASME B40.100 Grade 1A |
| Accuracy Scale | Full Scale |
| Ambient Operating Temperature Range (°C) | -20 to -60 |
| Application | HVAC/R; Low Pressure; Residential; Water Pressure Testing |
| Brand | WAHL |
| Case Diameter (inch) | 4 |
| Case Finish | Painted |
| Case Material | Steel |
| Compatible Process Media | Air; Gas; Water |
| Dial Color | White |
| Freeze Resistant Movement | No |
| Includes | Schrader Air Valve |
| Lens Material | Plastic |
| Manufacturer Part Number | 40KBDLA6#Hg |
| Mounting Type | Stem-Mount |
| Nominal Dial Size (inch) | 4 |
| Operating Temperature Range Ambient (°F) | -4 to 160 |
| Pointer Characteristics | Set hand; Set Pointer for Leak Off |
| Pressure Gauge Type | Gas Line Pressure Test Kit |
| Pressure Gauge or Kit Type | Low Pressure Gas & Water Test Gauge |
| Pressure Range (psi) | 0 to 6 |
| Pressure Range Type | Pressure |
| Primary Pressure Range | 0 to 6 |
| Primary Pressure Scale Color | Black |
| Primary Scale Minor Graduations | 0.1 |
| Primary Scale Units | psi |
| Process Connection (inch) | NPT |
| Process Connection Location | Bottom |
| Process Connection Type | NPT |
| Scale Type | Dual |
| Secondary Pressure Range | 0 to 12 |
| Secondary Pressure Scale Color | Blue |
| Secondary Scale Minor Graduations | 0.5 |
| Secondary Scale Units | in Hg |
| Sensor Material | Bronze |
| Sensor Type | Bourdon Tube |
| Series | 40KB |
| Socket Material | Brass |
| Standards | ASME |
| Wetted Parts Material | Brass/Bronze |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Gas and water pressure test kits have a gauge and test block for pressure-decay testing in facilities, process plants, and new construction areas.
Feature
K4555 Gas Test Gauge 4 In Connection Size 3/4 In NPT Connection Location Stem Mount Lower Accuracy (%) 1% Case Material Steel Display 4 In (100mm) White Aluminum With Black And Blue Markings Display Units PSI or Hg Resolution 1/10th PSI or 1/2 In Hg Operating Temp Range (F) (-4F) to 160F Series 40 KB Includes Hex Body And Schrader Air Valve Manufacturers Warranty Length 1 Year Range 6 PSI-12 In HgUlasan Produk
