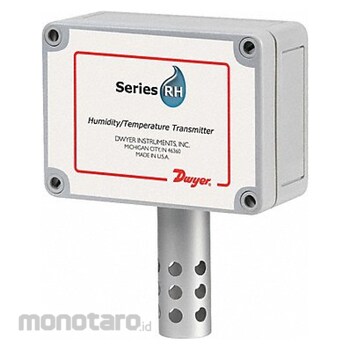

Dwyer Duct-Mounted & Ambient Temperature & Humidity Transmitter
#Grup produk P109667638
Sebelum PPN:
Rp5.699.900 - Rp6.799.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Brand | DWYER |
|---|---|
| Compensated Temperature Range (°F) | -4 to 140 |
| Conduit Connection (inch) | 1/2 NPS |
| Electrical Connections | Screw Terminals |
| Enclosure Rating | IP66 ; NEMA 4X |
| Features | Radiation Shield Option for Outdoor Installation in Direct Sunlight |
| For use with | A-RHP-FC; A-RHP-RT; RHRS |
| IP Rating | IP66 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | -40 |
| NEMA Rating | NEMA 4X |
| NIST Traceable Certificate | No |
| Power Required (VDC) | 10 to 35 |
| Power Source (V DC) | 10 to 35 |
| Process Connection Size (inch) | 1/2 |
| Process Connection Type | NPS |
| RH Sensor | Capacitive |
| Relative Humidity Range | 0 to 100% |
| Repeatability | ±0.1% |
| Response Time (s) | 15 |
| Series | RHP |
| Standards | CE; RoHS |
| Storage Temperature Range (°F) | -40 to 176 |
| Temperature Output (mA) | 4 to 20 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Outdoor transmitters measure relative humidity levels in an environmentally protected housing. They transmit outdoor humidity levels to a building’s economizer, which then adjusts cooling settings accordingly to reduce overall HVAC operational costs.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Humidity Transmitters Output 4 to 20mA Relative Humidity Range 0 to 100 Percent Relative Humidity Accuracy +/-3 Percent 20 to 80 Percent RH at 25 Degrees C Probe Length 3 in Electrical Connections Screw Terminals IP Rating IP66 NEMA Rating NEMA 4X Series RHP Compensated Temperature Range -4 Degrees to 140 Degrees F Enclosure Material Polycarbonate Polycarbonate ABS PVC Features Radiation Shield Option for Outdoor Installation in Direct Sunlight For Use With A-RHP-FC A-RHP-RT RHRSUlasan Produk
