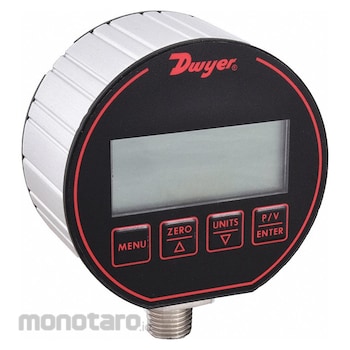

Dwyer Digital Pressure Gauge with Transmitter
#Grup produk P109667337
Spesifikasi
| UNSPSC | 41112107 |
|---|---|
| Accuracy | ±0.25% of Full Scale |
| Brand | DWYER |
| Cable Length (ft) | 3 |
| Digital Display Characteristics | 4 Digit LCD |
| Display Units | bar; cm wc; ft wc; in Hg; in wc; kg/cm2; kPa; mbar; mm Hg; oz/in²; psig |
| Features | Auto Zero; Backlight; Conversion of the Pressure Units; Peak and Valley; Two Alarm Set Points |
| Gauge Case Material | Aluminium |
| Gauge Process Connection Size (inch) | 1/4 in |
| IP Rating | IP66 |
| IP/NEMA Rating | IP66 ; NEMA 4X |
| Loop Resistance (ohm) | 600 Max |
| Maximum Operating Temperature (°F) | 158 |
| Minimum Operating Temperature (°F) | 32 |
| NEMA Rating | NEMA 4X |
| NIST Traceable Certificate | No |
| Nominal Dial Size (inch) | 3 |
| Number of Display Digits | 4 |
| Number of wires | 5; 6 |
| Output (mA DC) | 4 to 20 |
| Power Required (VDC, VAC) | 12 to 24; 12 to 24 |
| Power Source (V AC) | 12 to 24 |
| Power Source (V DC) | 12 to 24 |
| Pressure Gauge Type | Industrial Pressure Gauge with Transmitter |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Series | DPG-200 |
| Socket Material | 316L Stainless Steel |
| Standards | NEMA 4X |
| Switch Type | 2 SPDT Form C Contacts |
| Type of Pressure | Gauge |
| Wetted Materials | 316L Stainless Steel |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These digital pressure gauges mount to process lines like standard pressure gauges, but also convert pressure readings into electrical signals that are transmitted via an electrical connection to a receiver, control panel, or other system. They feature an LCD digital display with selectable units of measure. These versatile instruments are commonly used in fixed installations to monitor pumps, hydraulic and pneumatic equipment, and for testing and weighing applications.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
D1799 Digital Vacuum Gauge with Transmitter Nominal Dial Size 3 in Wetted Materials 316L Stainless Steel Accuracy +/-0.25 Percent of Full Scale Minimum Pressure 0 psi Maximum Pressure 100 psi Display Units bar cm wc ft wc in Hg in wc kg/cm2 kPa mbar mm Hg oz/in psig Output 4 to 20mA DC Series DPG-200 Gauge Primary Range Units psi Gauge Process Connection Gender Male IP Rating IP66 NEMA Rating NEMA 4X Gauge Process Connection Location Bottom Gauge Process Connection Size 1/4 iUlasan Produk
