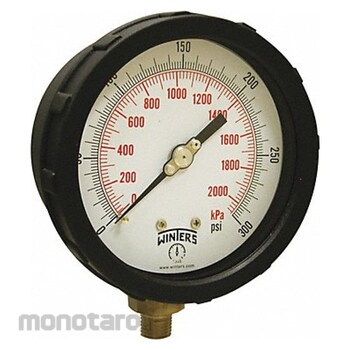

WINTERS Dial Pressure Gauge with Color-Coded Case
#Grup produk P109666338
Spesifikasi
| UNSPSC | 41112403 |
|---|---|
| Accuracy | ±1.0% |
| Accuracy Grade | ASME B40.100 Grade 1A |
| Accuracy Scale | Full Scale |
| Ambient Operating Temperature Range (°C) | -40 to 93 |
| Application | Compressors; Hydraulics; Machinery; Process Industries |
| Bezel Gasket Material | Silicone |
| Bezel Material | Polybutylene Terephthalate |
| Blowout Safety Back | No |
| Brand | WINTERS |
| Case Construction | Welded Joint |
| Case Depth (inch) | 2.28 |
| Case Diameter (inch) | 3.94 |
| Case Material | Plastic |
| Cleaned for Oxygen Service | No |
| Dial Color | White |
| Dial Face Material | Aluminium |
| Dry Dampening Feature | None |
| Field Fillable | Yes |
| Freeze Resistant Movement | No |
| Gauge Case Liquid | None |
| Gauge Case Material | PBT |
| Gauge Wetted Parts | Brass / Bronze |
| Hazardous Location Rating | Not Rated |
| IP/NEMA Rating | IP65 |
| Includes Calibration Certificate | No |
| Includes Mounting Hardware | No |
| Includes Vent Plug | Yes |
| Lens Material | Polycarbonate |
| Lens Material - Gauge | Plastic |
| Liquid-Filled Case | No |
| Mounting Type | Stem-Mount |
| Movement Material | Brass OT59 |
| Nominal Dial Size (inch) | 4 |
| Non-Sparking | No |
| Operating Temperature Range Ambient (°F) | -40 to 200 |
| Over-Pressure Limit | 25% |
| Panel Mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminium |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Range Type | Pressure |
| Primary Scale Units | psi |
| Process Connection (inch) | 1/4 NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size (inch) | 1/4 in |
| Process Connection Type | NPT |
| Process Temperature Range (°F) | -40 to 200 |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Scale Units | kPa |
| Sensor Material | Phosphor Bronze |
| Sensor Type | Bourdon Tube |
| Socket Material | Brass OT58 |
| Standards | ASME; CRN |
| Vibration Resistance | Field-Fillable |
| Wetted Parts Material | Phosphor Bronze |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
K4215 Industrial Pressure Gauge Nominal Dial Size 4 in Accuracy +/-1.0 Percent Gauge Case Material PBT Process Connection Type NPT Process Connection Gender Male Lens Material Polycarbonate Process Connection Size 1/4 in Field Fillable Yes Process Connection Location Bottom Case Color Black IP/NEMA Rating IP65 Primary Pressure Range 0 to 300 Dry Dampening Feature None Vibration Resistance Field-Fillable Dial Color White Pressure Gauge Type Industrial Pressure GaugeUlasan Produk
