Extech Current Probe
#Grup produk P109665755
Spesifikasi
| UNSPSC | 41111905 |
|---|---|
| AC Response Calculation | TRMS |
| Brand | EXTECH |
| Connector Type | Proprietary Power Source Connector; Shrouded Standard Banana Plugs |
| For use with | PQ3450; PQ3470 |
| Includes | (3) Flexible Clamp Probes |
| Jaw Opening (inch) | 8.5 |
| Manufacturer Part Number | PQ34-30 |
| Max. AC Current (A) | 3000 |
| Max. Conductor Size (inch) | 8.5 |
| Min. AC Current (A) | 30 |
| Output (mV/A) | 100; 10; 1 |
| Parameters Measured | AC Current |
| Probe Type | Clamp-Jaw; Flexible-Jaw |
| Safety Rating (V) | CAT III 600 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

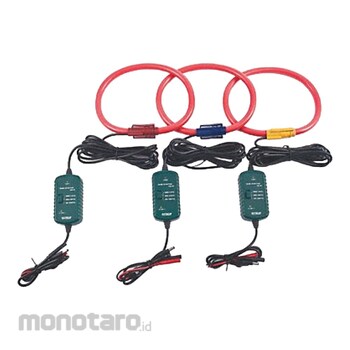

These lightweight current probes have flexible jaws that wrap or loop around conductors. They connect to compatible multimeters or other testing equipment and are often used on conductors of different shapes and sizes, thick bundles of cables and wires, or circuit breaker panels and bus bars in hard-to-reach areas.
Feature
Flexible Current Probe Connector Type Proprietary Power Source Connector Shrouded Standard Banana Plugs For Use With PQ3450 PQ3470 Maximum AC Current Measurement 3 000 A Minimum AC Current Measurement 30 A Maximum Conductor Size 8.5 in AC Response Calculation TRMS Output 100mV/A 10mV/A 1mV/A Parameters Measured AC Current Safety Rating CAT III 600V Probe Type Clamp On Flexible Jaw Opening 8.5 in Includes (3) Flexible Clamp Probes Manufacturers Warranty Length 2 yrUlasan Produk
