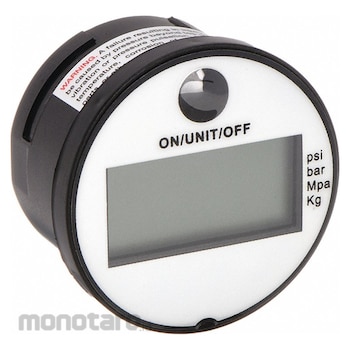

KODIAK Compressed Gas & Air Pressure Gauge
#Grup produk P109665454
Spesifikasi
| UNSPSC | 23151820 |
|---|---|
| Accuracy | ±1.00% |
| Accuracy Grade | Grade 1A |
| Accuracy Grade Gauge Type | Industrial |
| Adjustable Set Points | No |
| Application | Filtration Monitoring; Hydraulics; Pneumatics |
| Auto-Shutoff | Yes |
| Auto-shut Off Time (minute) | 5 |
| Backlit Screen | No |
| Battery Type (V) | 3 Lithium Battery |
| Blowout Safety Back | No |
| Brand | KODIAK |
| Case Color | Black |
| Case Depth (inch) | 1 |
| Case Diameter (inch) | 1.75 |
| Case Shape | Round |
| Display Range (bar) | 0 to 10 |
| Display Range (psi) | 0 to 145 |
| Display Resolution (psi) | 0.1 |
| Display Screen Height (inch) | 0.625 |
| Display Screen Type | LCD |
| Display Screen Width (inch) | 1.25 |
| Display Units | bar; kg/sq cm; Mpa; psi |
| Gauge Case Material | ABS Thermoplastic |
| Hazardous Location Rating | Not Rated |
| IP/NEMA Rating | Not Rated |
| Includes Batteries | Yes |
| Includes Calibration Certificate | No |
| Includes Mounting Hardware | Yes |
| Includes Rubber Boot | No |
| Languages | English |
| Low battery indicator | No |
| Mounting Type | Back-Mount |
| Nominal Dial Size (inch) | 1-3/4 |
| Non-Sparking | Yes |
| Number of Digits | 4 |
| Panel Mountable | Yes |
| Peak Hold | No |
| Power Source | Battery |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Range Type | Pressure |
| Primary Range | 0 to 145 |
| Primary Units | psi |
| Process Connection Gender | Male |
| Process Connection Location | Center Back |
| Process Connection Type | NPT |
| Sensor Type | Diaphragm |
| Series | KCDG15 |
| Socket Material | Brass |
| Standards | RoHS |
| Weather Proof | No |
| Wetted Parts Material | Brass |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These digital pressure gauges have an LCD display that provides clear and highly accurate pressure readings. They are commonly used on pneumatic regulators, filters, compressors, or with various applications where brass is acceptable for air or other gases.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Digital Industrial Pressure Gauge Accuracy +/-1.00 Percent Gauge Case Material ABS Thermoplastic Nominal Dial Size 1 3/4 in IP/NEMA Rating Not Rated Hazardous Location Rating Not Rated Socket Material Brass Sensor Type Diaphragm Process Connection Type NPT Display Units bar kg/sq cm Mpa psi Process Connection Gender Male Battery Type 3V Lithium Battery Process Connection Location Center Back Process Connection Size 1/8 in Power Source Battery Panel-Mountable YesUlasan Produk
