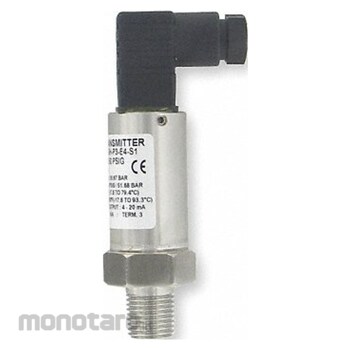

Dwyer Absolute Pressure Transmitter
#Grup produk P109662970
Spesifikasi
| UNSPSC | 41111938 |
|---|---|
| Accuracy | ±1% of Full Scale |
| Brand | DWYER |
| Calibration Certificate Included | No |
| Electrical Connection | 4-Pin DIN 43650 Form C Connector |
| Electrical Connections | 4-Pin DIN 43650 Form C Connector |
| Enclosure Rating | IP66 ; NEMA 4X |
| Explosion/Fire Proof | No |
| Features | Protection in Harsh Environments; Shock and Vibration Resistance; Wide Range of Models and Connections That can Meet Pressure Measurement Specifications From Low to Very High |
| For Use With Media Type | Compressors; Hydraulics; Pumps |
| Housing Material | Stainless Steel |
| IP Rating | IP66 |
| Intrinsically Safe | No |
| Maximum Loop Resistance (ohm) | 0 to 1,000 Max |
| Maximum Operating Temperature (°F) | 200 |
| Maximum Pressure (psia) | 15 |
| Minimum Operating Temperature (°F) | 0 |
| Minimum Pressure (PSI) | 0 |
| NEMA Rating | NEMA 4X |
| NIST Traceable Certificate | No |
| Number of wires | 2 |
| Output (mA DC) | 4 to 20 |
| Overall Height (inch) | 3.5 in |
| Overall Length (inch) | 5.5 |
| Overall Width (inch) | 1.281 |
| Overpressure (psia) | 45 |
| Power Required (VDC) | 10 to 30 |
| Pressure Range (psia) | 0 psi to 15 |
| Pressure Units | psia |
| Process Connection (inch) | 1/4 Male NPT |
| Process Connection Gender | Male |
| Process Connection Size (inch) | 1/4 in |
| Process Connection Type | NPT |
| Response Time (msec) | 300 |
| Series | 628 |
| Standards | CE; NSF; UL Listed |
| Thermal Error | ±0.04% |
| Type of Pressure | Absolute |
| Weight (oz) | 10 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These pressure transmitters are built with threaded process connections for direct mounting to systems. They also have electrical terminations that connect to compatible control systems for monitoring. Also called pressure sensors and pressure transducers, these instruments are commonly used for process automation and control, pneumatic sensing, presses and machine tools, and industrial and commercial HVAC and refrigeration applications.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Pressure Transmitter Minimum Pressure 0 psi Maximum Pressure 15 psia Electrical Connections 4-Pin DIN 43650 Form C Connector Output 4 to 20mA DC Accuracy +/-1 Percent of Full Scale Number of Wires 2 Process Connection Gender Male Process Connection Size 1/4 in Process Connection Type NPT Power Required 10 to 30V DC NEMA Rating NEMA 4X IP Rating IP66 Series 628 Maximum Operating Temperature 200 Degrees F Minimum Operating Temperature 0 Degrees F Housing Material Stainless SteelUlasan Produk
