ZOELLER Sump Pump System
#Grup produk P109586050
Spesifikasi
| UNSPSC | 40151517 |
|---|---|
| Alarm Included | No |
| Basin Capacity (gal) | 9.7 |
| Basin Dia. (inch) | 18 |
| Basin Height (inch) | 22 |
| Basin Material | Polypropylene |
| Cord Length (ft) | 9 |
| Discharge (inch) | 1-1/2 FNPT |
| Duty cycle | Intermittent |
| Flow Rate @ 10ft. of Head (gpm) | 34 |
| Flow Rate @ 15ft. of Head (gpm) | 19 |
| Flow Rate @ 5ft. of Head (gpm) | 43 |
| Frequency (Hz) | 60 |
| Horsepower (HP) | 3/10 |
| Impeller Material | Polypropylene |
| Inlet (inch) | 4 |
| Max. Diameter Solids (inch) | 1/2 |
| Maximum Head (ft) | 19 |
| Maximum Liquid Temperature (°F) | 130 |
| Phase - Pumps | 1 |
| Pump Body Material | Cast Iron |
| Rated Voltage (V) | 120 AC |
| Rotation Speed (rpm) | 1550 |
| Switch Actuation | Vertical Float |
| Switch Electrical Connection | Integral |
| Vent Size (inch) | 2 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

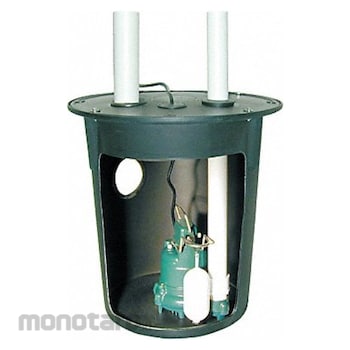

These sump pump systems include a pump, pipe, sump basin, and sump basin cover for a basement sump pump installation. They come with a primary pump only (simplex) or a primary pump and a back-up pump (duplex) system. Sump systems often include a switch while some systems require a control panel.
Feature
Sump Pump System HP 3/10 Rated Voltage 120V AC Hz 60 Hz Phase - Pumps 1 Switch Actuation Vertical Float Switch Electrical Connection Integral Pump Body Material Cast Iron Impeller Material Polypropylene Basin Material Polypropylene Flow Rate @ 5 ft of Head 43.0 gpm Flow Rate @ 10 ft of Head 34.0 gpm Flow Rate @ 15 ft of Head 19.0 gpm Max Head 19.0 ft Basin Dia 18 in Basin Capacity 9.7 gal Basin Height 22 in Discharge 1 1/2 in FNPT Cord Length 9 ftUlasan Produk
