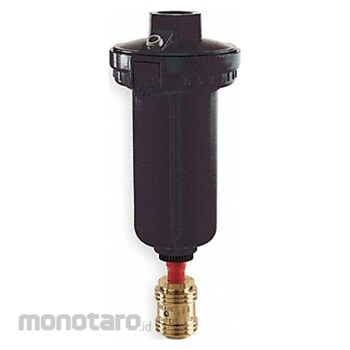

WILKERSON Air Operated Drain Valve
#Grup produk P109584955
Spesifikasi
| UNSPSC | 40141701 |
|---|---|
| Body Material | Zinc |
| Bowl Capacity (oz) | 5 |
| Drain Outlet Dia. (inch) | 1/8 |
| Drain Rate @ 100psi (gpm) | 80 |
| Manufacturer Part Number | XB3-04-M00B |
| Maximum Pressure (psi) | 200 |
| Min. Pressure (psi) | 20 |
| Operating Temperature Range (°F) | 32 to 150 |
| Overall Depth (inch) | 3 |
| Overall Dia. (inch) | 3 |
| Overall Height (inch) | 7 |
| Overall Width (inch) | 3-1/16 |
| Pipe Size (inch) | 1/2 NPT |
| Product Type | Automatic Drain Valve |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Air-operated drain valves are powered by compressed air and don't require electricity. Air actuates the valve to open and close and keeps systems running smoothly.
Feature
Automatic Drain Valve Pipe Size 1/2 in NPT Drain Outlet Dia 1/8 in Max Pressure 200 psi Operating Temp Range 32 Degrees to 150 Degrees F Drain Rate @ 100 PSI 80.0 gpm Min Pressure 20 psi Bowl Capacity 5 oz Body Material Zinc Overall Height 7 in Overall Width 3 1/16 in Overall Depth 3 in Overall Dia 3 inUlasan Produk
