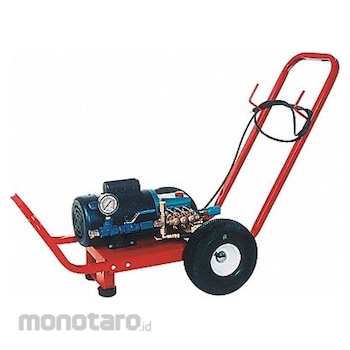

WHEELER-REX Electric-Operated Hydrostatic Test Pump
#Grup produk P109584830
Spesifikasi
| UNSPSC | 40151533 |
|---|---|
| Dimensions (LxWxH) (inch) | 28x17x35 |
| Discharge Connection Size (inch) | 3/8 |
| Discharge Connection Type | NPT |
| Discharge Hose Length (ft) | 10 |
| Discharge Hose Size (inch) | 1/2 |
| Discharge Hose Type | NPT |
| Discharge Port (inch) | 3/8 NPT |
| Frequency (Hz) | 60 |
| Horsepower (Maximum) (HP) | 1-1/2 |
| Includes | Two Wheeled Cart with Pneumatic Tires |
| Intake Connection Size (inch) | 3/8 |
| Intake Connection Type | NPT |
| Intake Hose Length (ft) | 10 |
| Intake Hose Size (inch) | 3/8 |
| Intake Hose Type | NPT |
| Lubrication | Continuous Oil Bath |
| Manufacturer Part Number | 47100 |
| Max. Discharge Pressure (psi) | 1000 |
| Max. Gauge Reading (psi) | 2000 |
| Maximum Flow Rate (GPM) | 2.2 |
| Maximum Motor Speed (rpm) | 3450 |
| Nameplate Voltage (V) | 115/220 AC |
| Number of Pistons | 3 |
| Overall Height (inch) | 35 |
| Overall Length (inch) | 28 |
| Overall Width (inch) | 17 |
| Phase | Single |
| Pump Design | Triplex Piston |
| Relief Valve Type | Adjustable Pressure |
| Shaft Outer Diameter (inch) | 5/8 |
| Sub Brand | Wheeler Rex |
| Suction Port (inch) | 3/8 NPT |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Electric-operated hydrostatic test pumps are mounted to a frame with wheels, relocating the pump to wherever it's needed.
Feature
Hydrostatic Test Pump Discharge Connection Size 3/8 in Discharge Connection Type NPT Discharge Pressure (Maximum) 1 000 psi Flow Rate (Maximum) 2.2 gpm Horsepower (Maximum) 1 1/2 hp Intake Connection Size 3/8 in Intake Connection Type NPT Intake Hose Size 3/8 in Intake Hose Type NPT Motor Speed (Maximum) 3 450 RPM Nameplate Voltage 115/220V AC Overall Height 35 in Overall Length 28 in Overall Width 17 in Pump Design Triplex Piston Discharge Hose Size 1/2 inUlasan Produk
