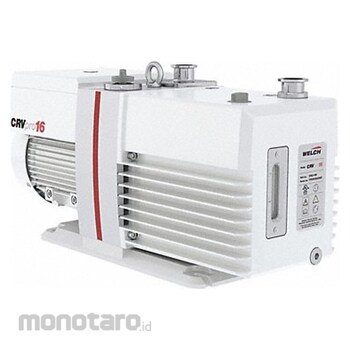

Welch Rotary Vane Vacuum Pump
#Grup produk P109584672
Spesifikasi
| UNSPSC | 40151502 |
|---|---|
| Application | Commercial; Commercial Chillers; Industrial Refrigeration Service; Moisture From Industrial; Removal of Air |
| Current Rating (A) | 16 |
| Finish | Powder Coat |
| Fluid Compatibility | Oil |
| Free Air Displacement (CFM) | 12.8 |
| Frequency (Hz) | 60 |
| Includes | 3L Pump Oil; Cord; Plug |
| Inlet Size (inch) | 1/4 |
| Inlet Type | NPT |
| Lead-Free | No |
| Manufacturer Part Number | 3016-02 |
| Maximum Discharge Pressure (mbar) | 0 (zero) |
| Maximum Operating Pressure (psi) | 0 (zero) |
| Maximum Speed (rpm) | 1725 |
| Maximum Vacuum (torr) | 0.003 |
| Outlet Size (inch) | 1/4 |
| Outlet Type | NW25 |
| Output Power (HP) | 0.75 |
| Overall Height (inch) | 22.4 |
| Overall Length (inch) | 8.1 |
| Overall Width (inch) | 11.4 |
| Phase | Single |
| Runs Dry | No |
| Sound Level (dBA) | 55 |
| Valve Type | Gas Ballast |
| Voltage (V) | 115 AC |
| Weight (lbs) | 81.4 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Lubricated rotary vane vacuum pumps use oil to lubricate and cool the pump's internal components. The oil helps smooth operation and reduce maintenance. These pumps are used in vacuum ovens and in freeze-drying applications.
Peringatan
Produk beroperasi pada tegangan 115 volt AC, maka akan memerlukan transformator/trafo atau adaptor yang sesuai untuk mengubah tegangan listrik menjadi 115 volt AC. Tanpa adaptor atau transformator yang sesuai, penggunaan barang elektronik dengan tegangan 115 volt AC di Indonesia dapat menyebabkan kerusakan pada perangkat tersebut. Oleh karena itu, penting untuk memeriksa spesifikasi teknis barang sebelum menggunakannya di negara dengan tegangan listrik yang berbeda.Feature
Vacuum Pump Output Power 0.75 hp Phase Single Voltage 115V AC Maximum Flow Rate 12.8 cfm Maximum Vacuum 0.003 torr Inlet Size 1/4 in Inlet Type NPT Outlet Size 1/4 in Outlet Type NW25 Application Commercial Commercial Chillers Industrial Refrigeration Service Moisture From Industrial Removal of Air Maximum Discharge Pressure 0 mbar Maximum Operating Pressure 0 psiUlasan Produk
