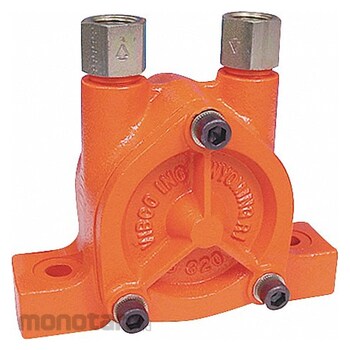

VIBCO Hydraulic Vibrator
#Grup produk P109583859
Spesifikasi
| UNSPSC | 24101727 |
|---|---|
| Application | Concrete Forming Equipment; Construction Equipment |
| Bin Weight Capacity (lbs) | 4450 |
| Duty cycle | Continuous |
| For Location | Outdoor |
| For Material Type | Wet |
| Force (lbs) | 617 @1000psi |
| Hydraulic Flow Rate (gpm) | 7 @ 1000 PSI |
| Inlet Connection (inch) | 1/2 NPT |
| Manufacturer Part Number | B-320 |
| Maximum Force (lbf) | 617 |
| Maximum Inlet Pressure (PSI) | 3000 |
| Maximum Vibration Speed (vpm) | 5300 |
| Mount Hole Center-to-Center Width (inch) | 5 |
| Mount Hole Size | 1/2 |
| Mount Plate Included | No |
| Mount Plate Required | Yes |
| Mount Type | Bolt-On |
| Number of Mounting Holes | 2 |
| Outlet Connection (inch) | 1/2 NPT |
| Overall Dim. (LxWxH) (inch) | 3.63x6.88x5.88 |
| Sound Level (dBA) | 62 |
| Vibration Speeds @ PSI (vpm) | 3700 @ 600psi; 4500 @ 800psi; 5300 @ 1000psi |
| Weight (lbs) | 10 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
General purpose hydraulic vibrators feature adjustable speed and force with low sound levels.
Feature
Hydraulic Vibrator Hydraulic Flow Rate 7 gpm @ 1000 PSI Inlet Connection Size 1/2 Maximum Inlet Pressure 3 000 psi Outlet Connection Size 1/2 Maximum Bin Weight Capacity 4 450 lb Overall Height 5.88 in Overall Length 3.63 in Overall Width 6.88 in Sound Level 62 dBA Mount Type Bolt-On Inlet Connection Type NPT Outlet Connection Type NPT Maximum Vibration Speed 5 300 vpm Maximum Force 617 lbf Application Concrete Forming Equipment Construction Equipment Duty Cycle ContinuousUlasan Produk
