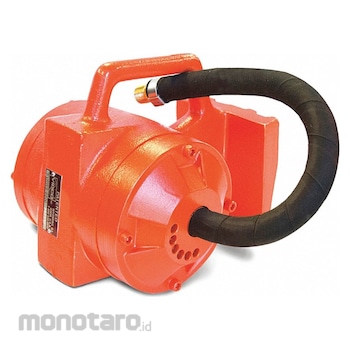

VIBCO High Frequency Pneumatic Vibrator
#Grup produk P109583831
Spesifikasi
| UNSPSC | 24101727 |
|---|---|
| Air Flow Rate (CFM) | 58 @ 100psi |
| Application | Asphalt; Bauxite; Calcium Carbide; Clay-lime Lumps and like Materials; Coal; Crushed Marble; Hy-ash; Iron Ore; Malt (if sticky); Molasses; Potash; Salt; Salts; Sand; Stone; Stone Dust |
| Duty cycle | Continuous |
| Force (lbs) | 5545 @ 80psi; 6500 @ 90psi; 7200 @ 100psi |
| Includes | Oiler |
| Inlet Connection (inch) | 1 NPT |
| Manufacturer Part Number | SVRWS-6500 |
| Maximum Force (lbf) | 7200 |
| Maximum Inlet Pressure (PSI) | 100 |
| Maximum Vibration Speed (vpm) | 10000 |
| Mount Plate Included | No |
| Mount Plate Required | Yes |
| Overall Dim. (LxWxH) (inch) | 8.62x8.62x9.88 |
| Pneumatic Vibrator Type | Railroad Car Shaker |
| Series | SVRWS |
| Sound Level (dBA) | 85 |
| Vibration Speed @ 80psi (vpm) | 8800 |
| Vibration Speeds @ PSI (vpm) | 10000 @ 100psi; 8800 @ 80psi; 9500 @ 90psi |
| Weight (lbs) | 62 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Reduced noise high frequency vibrators feature additional exhaust muffling for significantly lessened noise levels.
Feature
Pneumatic Vibrator Air Flow Rate 58 cfm @ 100 psi Maximum Force 7 200 lbf Inlet Connection Size 1 in Inlet Connection Type NPT Maximum Vibration Speed 10 000 vpm Overall Height 9.88 in Overall Length 8.62 in Overall Width 8.62 in Sound Level 85 dBA Duty Cycle Continuous Pneumatic Vibrator Type Railroad Car Shaker Force @ PSI 5 545 lbf @ 80 psi 6 500 lbf @ 90 psi 7 200 lbf @ 100 psi Maximum Inlet Pressure 100 psi Force @ 60 psi Not Applicable Force @ 80 psi 5 545 lbfUlasan Produk
