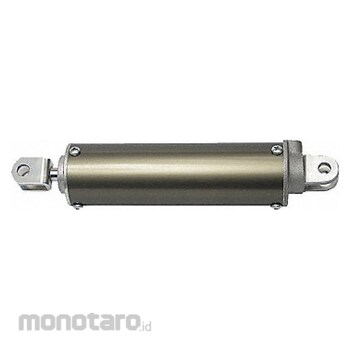

VELVAC Single-Acting Tie Rod Air Cylinder
#Grup produk P109583716
Spesifikasi
| UNSPSC | 27131701 |
|---|---|
| Air inlet (inch) | 1/4 NPT |
| Body Material | Aluminium |
| Bore Diameter (inch) | 2-1/2 |
| Cylinder Action | Single Acting |
| End Cap Material | Aluminium |
| Extended Length (inch) | 19-7/16 |
| For Fluid Type | Air |
| Magnetic Piston | Magnetic Piston |
| Manufacturer Part Number | 100101 |
| Maximum Operating Pressure (psi) | 100 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°F) | -20 |
| Mounting Style | Clevis |
| Piston Rod Material | Metal |
| Retracted Length (inch) | 12-5/8 |
| Rod Diameter (inch) | 5/8 |
| Spring Retraction Force (lbs) | 386 |
| Stroke Length (inch) | 6-3/4 |
| Tie rod Material | Metal |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These vehicle-mount air cylinders operate tailgates and hinged equipment on fleet vehicles.
Feature
Air Cylinder Body Material Aluminum Cylinder Type Round Body Cylinder Repair Non-Repairable Magnetic Piston Magnetic Piston Mounting Type Clevis Bore Diameter 2 1/2 in Cushion Type None Stroke Length 6 3/4 in Inlet Size 1/4 in Air Inlet Type NPT Spring Retraction Force 386 lb Cylinder Action Single Acting System of Measurement Inch Tie Rod Material Metal Inlet Gender Female Maximum Operating Pressure 100 psi Maximum Operating Temperature 185 Degrees FUlasan Produk
