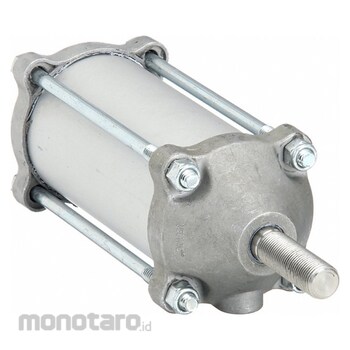

VELVAC Double-Acting Tie Rod Air Cylinder
#Grup produk P109583691
Sebelum PPN:
Rp4.899.900 - Rp7.399.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 27131701 |
|---|---|
| Air inlet (inch) | 1/4 NPT |
| Body Material | Aluminium |
| Cushion Type | None |
| Cylinder Action | Double Acting |
| End Cap Material | Aluminium |
| For Fluid Type | Air |
| Magnetic Piston | Magnetic Piston |
| Maximum Operating Pressure (psi) | 120 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Pressure (psi) | 10 |
| Minimum Operating Temperature (°F) | -20 |
| Mounting Type | Clevis |
| Piston Material | Buna-N |
| Piston Rod Material | Metal |
| Repairable Cylinder | Non-Repairable |
| Rod Diameter (inch) | 5/8 |
| Rod Thread Length (inch) | 1-3/4 |
| Rod Thread Size | 5/8\"-18 |
| Tie rod Material | Metal |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These vehicle-mount double-acting tie-rod air cylinders feature a robust, corrosion-resistant design for use on vehicles contacting road debris and moisture.
Feature
Air Cylinder Body Material Aluminum Cylinder Repair Non-Repairable Magnetic Piston Magnetic Piston Mounting Type Clevis Bore Diameter 2 1/2 in Cushion Type None Stroke Length 4 in Inlet Size 1/4 in Air Inlet Type NPT Spring Retraction Force 483 lb Cylinder Action Double Acting System of Measurement Inch Tie Rod Material Metal Inlet Gender Female Maximum Operating Pressure 120 psi Maximum Operating Temperature 185 Degrees FUlasan Produk
