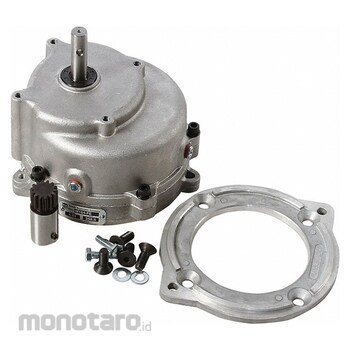

TOLEDO GEARMOTOR Speed Reducer
#Grup produk P109582531
Spesifikasi
| UNSPSC | 26111503 |
|---|---|
| Bearing Type | Ball |
| Gear Material | Steel |
| Gear Type | Spur |
| Housing Material | Die Cast Aluminium |
| Input Connection Type | Direct Drive, Inline |
| Input Keyway Depth (inch) | 3/16 |
| Input Keyway Width (inch) | 3/16 |
| Input Shaft Diameter (inch) | 5/8 |
| Lubrication | Recommend Synthetic 75W90; Shipped Dry |
| Maximum Input Speed (rpm) | 1725 |
| Motor Frame Designation | 56C |
| Mounting Orientation | Any Angle |
| Number of Stages | 2 |
| Output Shaft Diameter (inch) | 7/8 |
| Overall Length (inch) | 7 |
| Rotation | CW/CCW |
| Seal Type | Double Lip on Input and Output |
| Shaft Orientation | Parallel Inline |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Direct-drive inline parallel speed reducers receive power from a compatible motor joined to the input shaft using a rigid or flexible coupling.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Speed Reducer Input Connection Type Direct Drive Inline Gear Type Spur Maximum Output Speed 358 RPM Motor Frame Designation 56C Gear Ratio 4.80 1 Rotation CW/CCW Maximum Input Horsepower 1.48 hp Maximum Output Torque 255 in-lb Overhung Load Capacity 249 ft-lb Mounting Orientation Any Angle Bearing Type Ball Maximum Input Speed 1 725 RPM Gear Material SteelUlasan Produk
