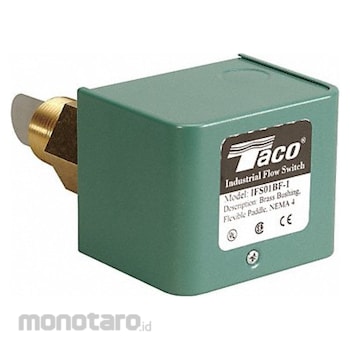

TACO Paddle Flow Switch
#Grup produk P109581657
Sebelum PPN:
Rp4.099.900 - Rp5.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 39121538 |
|---|---|
| Connection (inch) | 1 NPT |
| Connection Size (inch) | 1 |
| Connection Type | NPT |
| Contact Rating (DC) (A) | 15 @125/250VAC |
| Flow Rate (Minimum) (gpm) | 4.5 |
| Flow-Switch Type | Paddle |
| For Pipe Size (inch) | 1 |
| Frequency (Hz) | 60 |
| Housing/Body Material | Brass |
| Maximum Media Temperature (°F) | 250 |
| Nameplate Voltage (V) | 125 |
| Overall Height (inch) | 4.7 |
| Overall Length (inch) | 3.5 |
| Overall Width (inch) | 3.7 |
| Phase | Single |
| Set Point Configuration | Adjustable |
| Standards | CE Certified; CSA Certified; UL Listed |
| Switch Position | Normally Open |
| Switch Type | SPDT |
| Wetted Material | Brass; EPDM; Fluorosilicone; Stainless Steel |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Insertion-style paddle flow switches detect and control the flow of liquids traveling in a system. Insertion-style switches penetrate perpendicularly into a pipe segment within a system and, in most cases, can be installed onto an active line, unlike panel-mounted or inline flowmeters.
Feature
Flow Switch Flow Switch Type Paddle For Pipe Size 1 in Housing Material Brass Connection Size 1 in Connection Type NPT Flow Rate - Minimum 4.5 gpm Flow Rate - Maximum 1 500 gpm Media Temperature - Minimum 32 Degrees F Media Temperature - Maximum 250 Degrees F Switch Type SPDT Switch Enclosure NEMA 1 Filter Rating - Maximum Not Applicable Wetted Material Brass EPDM Fluorosilicone Stainless Steel Phase Single Contact Rating (AC) 15 A @ 125/250VUlasan Produk
