SPEEDAIRE Filter, Regulator & Lubricator (FRLs)
#Grup produk P109579971
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Sebelum PPN:
Rp1.399.900 - Rp6.899.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 27131604 |
|---|---|
| Adjustment Location | Top |
| Adjustment Mechanism | Knob |
| Adjustment Mechanism Material | Reinforced Nylon |
| Air Flow Direction | Left to Right |
| Air Inlet Gender | Female |
| Air Inlet Type | NPT |
| Air Outlet Gender | Female |
| Air Outlet Type | NPT |
| Drain Included | Yes |
| Drain Type | Manual |
| Filter Rating (micron) | 5 |
| Filter Type | Particulate |
| For Fluid Type | Compressed Air |
| For Substance Type | Air |
| Minimum Operating Pressure (MPa) | 0.05 |
| Minimum Operating Temperature (°C) | 5 |
| Number of Air Inlets | 1 |
| Number of Air Outlets | 1 |
| Pressure Control Type | Relieving |
| Pressure Gauge Port Gender | Female |
| Pressure Gauge Port Type | NPT |
| Recommended Lubricant | ISO VG 32 |
| Seal Material | Rubber |
| Series | Heavy Duty |
| Sight Dome Included | Yes |
| Sight Gauge Included | Yes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

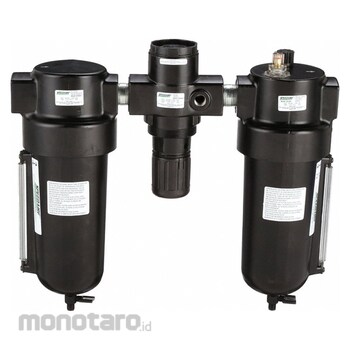

These FRLs by Speedaire are complete systems that include a filter, a regulator, and a lubricator. In some cases the filter and regulator may be combined in a single unit. FRL modules are interchangeable within the same brand and series and provide flexibility in customizing the system based on the needs of the application.
Feature
Filter/Regulator/Lubricator Air Inlet Size 3/4 in Air Inlet Type NPT Maximum Flow Rate 160 cfm Maximum Operating Pressure 250 psi Filter Rating 5 micron Filter Bowl Material Metal with Sight Glass Filter Bowl Capacity 32 oz Lubricator Bowl Capacity 32 oz Drain Type Manual Overall Width 14 3/4 in Series Heavy Duty Adjustment Location Top Adjustment Mechanism Knob Adjustment Mechanism Material Reinforced Nylon Air Flow Direction Left to Right Air Inlet Gender FemaleDokumentasi Produk
