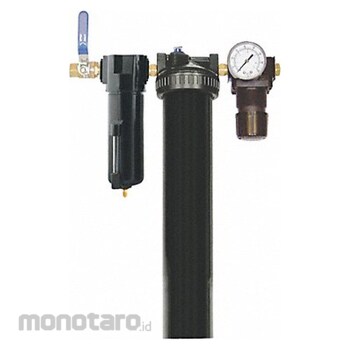

SPEEDAIRE Deliquescent Desiccant Compressed Air Dryer
#Grup produk P109579795
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| UNSPSC | 23201202 |
|---|---|
| Air Inlet Gender | Female |
| Air Inlet Size (inch) | 1/2 |
| Air Inlet Type | NPT |
| Air Outlet Gender | Female |
| Air Outlet Size (inch) | 1/2 |
| Air Outlet Type | NPT |
| Body Material | Metal |
| Bowl Capacity (lbs) | 1.5 |
| Bowl material | Metal |
| Desiccant Material | Deliquescent |
| Dew Point Temperature (°F) | -40 |
| Includes | Gauge; Shut-Off Valve |
| Manufacturer Part Number | PAC-20 |
| Maximum Air Compressor Horsepower (HP) | 15 |
| Maximum Flow @ 100psi (cfm) | 40 |
| Maximum Flow Rate (CFM) | 40 |
| Maximum Operating Pressure (psi) | 125 |
| Maximum Operating Temperature (°F) | 120 |
| Number of Air Inlets | 1 |
| Number of Air Outlets | 1 |
| Overall Depth (inch) | 5-1/8 |
| Overall Height (inch) | 24 |
| Overall Width (inch) | 12-1/4 |
| Total Air Capacity (ft³) | 0.095 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These multi-stage deliquescent desiccant dryers install in-line and include additional components, such as air filtering, to treat the air before it is sent to the point of use.
Feature
Desiccant Compressed Air Dryer Air Inlet Size 1/2 in Air Inlet Type NPT Bowl Capacity 1.5 lb Dew Point -40 Degrees F Maximum Flow Rate 40 cfm Maximum Operating Pressure 125 psi Maximum Operating Temperature 120 Degrees F Overall Depth 5 1/8 in Overall Height 24 in Overall Width 12 1/4 in Total Air Capacity 0.095 cu ft Air Inlet Gender Female Air Outlet Gender Female Air Outlet Size 1/2 in Air Outlet Type NPT Body Material Metal Bowl Material MetalUlasan Produk
