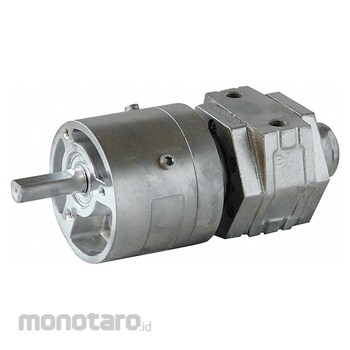

SPEEDAIRE Air Gearmotor
#Grup produk P109578954
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Sebelum PPN:
Rp9.799.900 - Rp9.899.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 27131508 |
|---|---|
| Air Inlet Port (inch) | 1/8 NPT |
| Air consumption (CFM) | 21 |
| Gear Ratio | 15:1 |
| Housing Material | Aluminium |
| Housing Material Finish | Painted |
| Includes | Muffler |
| Maximum Ambient Temperature (°F) | 250 |
| Maximum Flow Rate (CFM) | 21 |
| Minimum Ambient Temperature (°F) | 0 (zero) |
| Mount Type | Face |
| Mounting Orientation | Any Angle |
| Outside Diameter (inch) | 3 |
| Overall Height (inch) | 2-15/16 |
| Overall Width (inch) | 2-15/16 |
| Rotation | CW/CCW |
| Shaft Diameter (inch) | 1/2 |
| Shaft Length (inch) | 1-3/8 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These rotary vane gearmotors use pressurized air to spin an internal shaft with vanes to generate rotational force. The vanes act as fins or blades that catch air to create a rotating force controlled by integrated gears to reduce speed and increase torque.
Feature
Air Gearmotor Output Power @ Maximum Speed 0.32 hp Maximum Torque 49 in-lb No Load Speed 400 RPM Maximum Flow Rate 21 cfm Shaft Diameter 1/2 in Shaft Length 1 3/8 in Mount Type Face Inlet Size 1/8 in Air Inlet Type NPT Rotation CW/CCW Housing Material Aluminum Gear Ratio 15 1 Air Consumption 21 cfm Housing Material Finish Painted AGMA Gear Class Not Applicable Air Inlet Center to Center Distance 1 3/4 in Inlet Gender Female Output Power @ 25 Percent Maximum Speed Not ApplicableDokumentasi Produk
