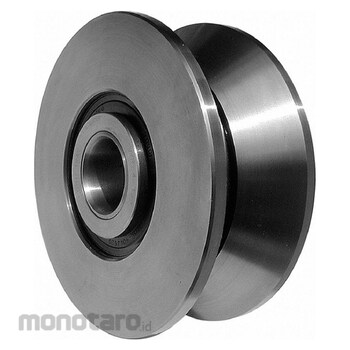

SMITH BEARING Yoke Track Roller
#Grup produk P109578413
Spesifikasi
| UNSPSC | 31171505 |
|---|---|
| Bearing Material | Alloy Steel |
| Bearing Material Grade | 52100 |
| Bearing Type | Tapered Roller |
| Bore Diameter (inch) | 1 |
| Closure | Double Sealed |
| Duty Type | Heavy |
| Dynamic Radial Load Capacity (lbf) | 14300 |
| Features | Large Lubrication Reservoir |
| Load Direction | Radial; Thrust |
| Manufacturer Part Number | VYR-4-1/2 |
| Maximum Temperature (°F) | 250 |
| Minimum Temperature (°F) | -40 |
| Overall Length (inch) | 1-13/16 |
| Roller Diameter (inch) | 4-1/2 |
| Roller Head Type | V-Groove |
| Roller Material | Alloy Steel |
| Roller Material Grade | 52100 |
| Roller Width (inch) | 1-3/4 |
| Rolling Element Rows | 2 |
| Seal Material | Acetyl |
| Seal Type | Contact |
| Standards | ABMA |
| System of Measurement | Inch |
| V-Groove Angle (°) | 90 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
V-groove yoke track rollers have a deep channel along the roller head to connect to a rail. They are useful for dirty environments where dust and dirt fall away from the track and can't accumulate on a flat surface.
Feature
Yoke Roller Bore Diameter 1 in Closure Open Duty Type Heavy For Environment High Temperature Overall Length 1 13/16 in Roller Diameter 4 1/2 in Roller Head Type V-Groove Roller Material Alloy Steel Roller Width 1 3/4 in Rolling Element Rows 1 Seal Type Contact System of Measurement Inch Bearing Material Alloy Steel Bearing Material Grade 52100 Bearing Type Tapered Roller Dynamic Radial Load Capacity 14 300 lbf Features Large Lubrication Reservoir Load Direction Radial ThrustUlasan Produk
