SMC Vacuum Regulator
#Grup produk P109578291
Kondisi Barang:
Authorized Partner
Spesifikasi
| UNSPSC | 41112404 |
|---|---|
| Includes | Bracket; Gauge |
| Manufacturer Part Number | IRV20-N09BG |
| Maximum Flow Rate (LPM) | 240 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Vacuum Pressure (kPa) | -1.3 |
| Minimum Operating Temperature (°C) | 5 |
| Minimum Vacuum Pressure (kPa) | -100 |
| Overall Depth (mm) | 71 |
| Overall Height (mm) | 71 |
| Overall Width (mm) | 101 |
| Series | IRV |
| Vacuum Inlet Size (inch) | 5/16 |
| Vacuum Inlet Type | Tube |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

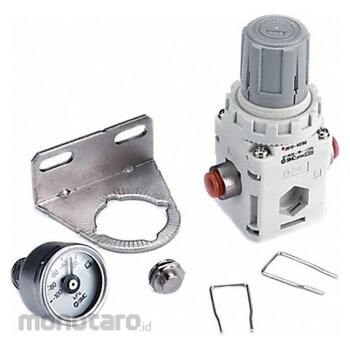

These vacuum regulators maintain appropriate vacuum levels for lifting and manipulating workpieces in automatic assembly and material handling applications.
Feature
Vacuum Regulator Vacuum Inlet Size 5/16 in Vacuum Inlet Type Tube Maximum Flow Rate 240 lpm Minimum Vacuum Pressure -100 kPa Maximum Vacuum Pressure -1.3 kPa Minimum Operating Temperature 5 Degrees C Maximum Operating Temperature 60 Degrees C Includes Bracket Gauge Series IRV Overall Depth 71 mm Overall Height 71 mm Overall Width 101 mmDokumentasi Produk
