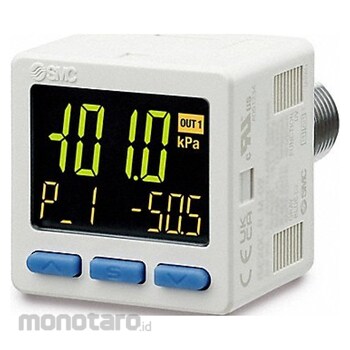

SMC Vacuum Pressure Switch
#Grup produk P109578273
Kondisi Barang:
Authorized Partner
Spesifikasi
| UNSPSC | 39121548 |
|---|---|
| Connection/Lead Type | 3m Leads |
| Includes | Bracket |
| Lead Length (m) | 3 |
| Manufacturer Part Number | ZSE20B-R-N01-WA1 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Vacuum Pressure (kPa) | 101.3 |
| Minimum Operating Temperature (°C) | 5 |
| Minimum Vacuum Pressure (kPa) | 10 |
| Overall Depth (mm) | 40 |
| Overall Width (mm) | 42.2 |
| Port Size (inch) | 1/8 |
| Port Size / Thread Size (inch) | 1/8 |
| Series | ZSE |
| Standards | CE; RoHS |
| Switch Output Type | 2 NPN Outputs 1 Analog Output |
| Voltage (V) | 24 DC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These high precision vacuum pressure switches have a faster response time and larger display than compact pressure switches. They connect to equipment in material handling applications to measure and display pressure in order to activate equipment on/off switches.
Feature
Vacuum Pressure Switch Voltage 24V DC Port Size 1/8 in Minimum Vacuum Pressure 10 kPa Maximum Vacuum Pressure 101.3 kPa Minimum Operating Temperature 5 Degrees C Maximum Operating Temperature 60 Degrees C Switch Output Type 2 NPN Outputs 1 Analog Output Lead Length 3 m Series ZSE Includes Bracket Overall Depth 40 mm Overall Width 42.2 mm Standards CE RoHSDokumentasi Produk
