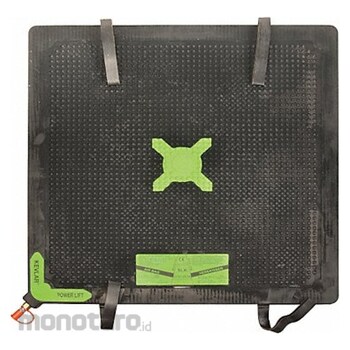

SIMPLEX Lifting Bag & Valve
#Grup produk P109577937
Spesifikasi
UNSPSC | 24101614 |
---|---|
Air Volume Required (ft³) | 0.53 |
Bag Length (inch) | 9 |
Bag Width (inch) | 9 |
Burst Pressure Rating (psi) | 464 |
Collapsed Height (inch) | 1-1/8 |
For Fluid Type | Compressed Air |
Manufacturer Part Number | B3A |
Material | Kevlar with Neoprene |
Maximum Lifting Height (inch) | 5-1/8 |
Maximum Operating Pressure (psi) | 116 |
Overall Length (inch) | 9 |
Overall Width (inch) | 9 |
Reinforcement Material | Kevlar |
Series | Series B |
Weight (lbs) | 2.8 |
Weight Capacity (t) | 3.1 |
Pilih jenis produk yang diinginkan
Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
---|---|---|---|---|
Loading... |
Informasi Produk
Description
Lifting bags lift and separate heavy loads for reliable and safe elevation and positioning during production, maintenance, or relocation.
Feature
Lifting Bag Weight Capacity 3.1 ton Bag Length 9 in Bag Width 9 in Maximum Lifting Height 5 1/8 in Air Volume Required 0.53 cu ft Bag Material Kevlar(R) with Neoprene Inlet Size 1/4 in Air Inlet Type NPT Number of Plies Two-Ply Maximum Operating Pressure 116 psi Reinforcement Material Kevlar(R) Burst Pressure (PSI) 464 psi Inlet Gender Female Weight 2.8 lb For Fluid Type Compressed Air Series Series B System of Measurement Inch Overall Width 9 in Overall Length 9 inUlasan Produk
