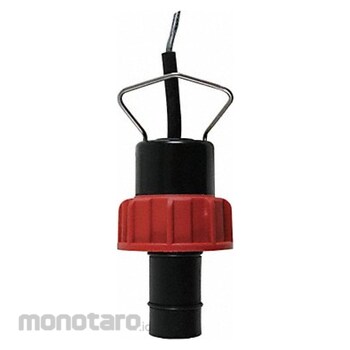

SIGNET Paddlewheel Flowmeter
#Grup produk P109577812
Sebelum PPN:
Rp22.999.900 - Rp24.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 41112501 |
|---|---|
| Cable Length (ft) | 25 |
| Flowmeter Type | Paddlewheel |
| For Pipe Size (inch) | 1/2 to 4 |
| Housing Material | Polypropylene |
| Max. Viscosity (SUS) | 500 |
| Maximum Flow Rate (GPM) | 793 |
| Maximum Media Temperature (°F) | 194 |
| Media Temperature Range (°F) | 0 to 194 |
| Minimum Media Temperature (°F) | 0 (zero) |
| Overall Height (inch) | 0.5 |
| Overall Length (inch) | 4 |
| Overall Width (inch) | 0.5 |
| Product Type | Paddlewheel |
| Rotor Material | PVDF |
| Seal Material | Viton |
| Shaft Material | Titanium |
| Standards | CE Certified; cUL Listed; RoHS; UL Listed |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Insertion-style paddlewheel flowmeters with remote output for water measure the flow rate of water and water-based liquids traveling through systems. Insertion-style meters and sensors penetrate perpendicularly into a pipe segment within a system and, in most cases, can be installed onto an active line. Remote output sends signals to alarms, warning lights, or programmable logic controllers (PLC) when media stops or starts flowing.
Feature
Mechanical Flowmeter Product Type Paddlewheel Flowmeter Type Paddlewheel Connection Type BSPT Media Temperature - Maximum 194 Degrees F Media Temperature - Minimum 0 Degrees F Viscosity - Maximum 500 SUS Voltage - Maximum Non-Powered Housing Material Polypropylene Rotor Material PVDF Seal Material Viton Shaft Material Titanium Wetted Material PVDF Titanium Standards CE Certified cUL Listed RoHS UL Listed Flow Rate - Maximum 793 gpm Flow Rate - Minimum 0.95 gpmUlasan Produk
