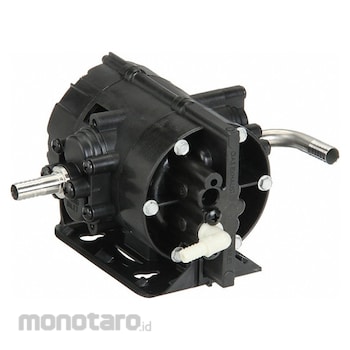

SHURFLO Air-Operated Sprayer Pump
#Grup produk P109577672
Sebelum PPN:
Rp4.299.900 - Rp5.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40151548 |
|---|---|
| Diaphragm Chamber Design | 2 |
| Discharge Connection Size (inch) | 3/8 |
| Discharge Port (inch) | 3/8 Barbed |
| Discharge Type | Barbed |
| Duty cycle | Continuous |
| Flow Rate @ 60psi (gpm) | 0.6 |
| Fluid Connection Size (inch) | 3/8 |
| Fluid Intake Connection Type | Barbed |
| Housing Material | Polypropylene |
| Includes | Piston/Diaphragm Assemblies; Valve Seat O-Rings; Valves |
| Max. Discharge Pressure (psi) | 60 |
| Maximum Air Consumption (cfm) | 0.48 |
| Maximum Flow Rate (GPM) | 0.6 |
| Maximum Fluid Temperature (°F) | 130 |
| Overall Height (inch) | 6.3 |
| Overall Length (inch) | 5.8 |
| Overall Width (inch) | 3.8 |
| Pressure Switch | Yes |
| Pump Operation Type - NEW | Air |
| Series | 166 |
| Suction Port (inch) | 3/8 Barbed |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
On-demand air-operated sprayer pumps are driven by a compressor and run only when needed. As a liquid begins to flow, the pump senses a change in pressure and activates, driving the diaphragm to maintain a constant flow rate.
Feature
Diaphragm Pump Air Consumption (Maximum) 0.48 cfm Operating Pressure (Maximum) 60 psi Diaphragm Chamber Design 2 Diaphragm Material Viton Check Valve Material Viton Discharge Connection Size 3/8 in Discharge Connection Type Barbed Flow Rate (Maximum) 0.6 gpm Housing Material Polypropylene Intake Connection Size 3/8 in Intake Connection Type Barbed Pump Operation Type Air Pressure Switch Yes Duty Cycle Continuous Flow Rate @ 60 psi 0.6 gpm Feet of Head (Maximum) Not ApplicableUlasan Produk
