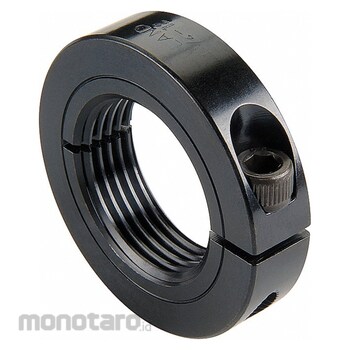

RULAND MANUFACTURING Shaft Collar for Threaded Shaft
#Grup produk P109575957
Spesifikasi
| UNSPSC | 31162811 |
|---|---|
| Bore Type | Threaded |
| Collar Material | Carbon Steel |
| Collar Material Finish | Black Oxide |
| Collar Material Grade | 1215 |
| Collar Width (inch) | 1/2 |
| Maximum Operating Temperature (°F) | 350 |
| Minimum Operating Temperature (°F) | -40 |
| Screw Material | Alloy Steel |
| Screw Material Finish | Black Oxide |
| Screw Seating Torque (lbs-inch) | 170 |
| Screw Thread Size | 1/4\"-28 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance (inch) | +0.0000/-0.0005 |
| Standards | ANSI; Conflict Minerals Compliant; ISO 9001:2015; REACH Compliant; RoHS Compliant |
| System of Measurement | Inch |
| Thread Type | Right Hand Thread |
| Width Tolerance (inch) | +0.003/-0.010 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These shaft collars thread onto a soft or hard shaft and lock in place without marring. They are for use on standard threaded shafts.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Shaft Collar System of Measurement Inch Bore Type Threaded Bore Diameter 5/8 in Bore Thread Size 5/8 In.-18 Collar Outside Diameter 1 5/16 in Inside Height to Flat Not Applicable Clearance Diameter 1.5 in Collar Width 7/16 in Collar Material Carbon Steel Keyway Width Not Applicable Collar Material Grade 1215 Keyway Depth Not Applicable Thread Direction Right Hand Thread Center to Lever Top Not Applicable Collar Construction 1-Piece Screw Material Alloy SteelUlasan Produk
