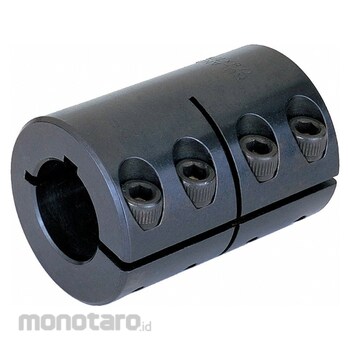

RULAND MANUFACTURING Rigid Shaft Coupling for Keyed Shaft
#Grup produk P109575896
Sebelum PPN:
Rp1.299.900 - Rp5.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 31162811 |
|---|---|
| Bore Tolerance (inch) | +0.0020 / +0.0005 |
| Bore Type | Round Keyed |
| Features | Precision Honed Bores; Vibration-Resistant Screws |
| Maximum Operating Temperature (°F) | 350 |
| Maximum Speed (rpm) | 4000 |
| Minimum Operating Temperature (°F) | -40 |
| Resistance Properties | Corrosion Resistant |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance (inch) | +0.0000 / -0.0005 |
| Standards | ANSI; Conflict Minerals Compliant; REACH Compliant; RoHS3 Compliant |
| System of Measurement | Inch |
| Zero Backlash | Yes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Set screw rigid keyed shaft couplings lock two shafts together when the set screws are firmly tightened onto each soft or pre-drilled shaft.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Rigid Shaft Coupling Bore Diameter 1 1 1/2 in Bore Diameter 2 1 1/2 in Bore Type Round Keyed Clearance Diameter 2.63 in Coupling Construction One-Piece Coupling Material Carbon Steel Coupling Outside Diameter 2 5/8 in Different Bore Sizes No Keyway Depth 1 3/16 in Keyway Depth 2 3/16 in Minimum Bore Diameter 1 1/2 in Keyway Width 1 3/8 in Keyway Width 2 3/8 in Maximum Bore Diameter 1 1/2 in Maximum Speed 4 000 RPM Maximum Torque 10 250 in-lb Overall Length 3 7/8 inUlasan Produk
