RULAND MANUFACTURING Oldham Coupling
#Grup produk P109575850
Spesifikasi
| UNSPSC | 31162811 |
|---|---|
| Angular Misalignment (°) | 0.5 |
| Application | Applications With High Parallel Misalignment (Up to 10% of the Coupling OD) |
| Disc Finish | Plain |
| Features | High Torsional Stiffness; Highly Customizable Coupling; Three-Piece Design; Zero-Backlash |
| For Misalignment Type | Angular; Axial; Parallel |
| Full Bearing Support Required | Yes |
| Maximum Speed (rpm) | 4500 |
| Mechanical Fuse Break | Yes |
| Minimum Operating Temperature (°F) | -10 |
| Standards | Conflict Minerals Compliant; ISO 9001:2015; REACH Compliant; RoHS3 Compliant |
| System of Measurement | Inch |
| Zero Backlash | Yes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

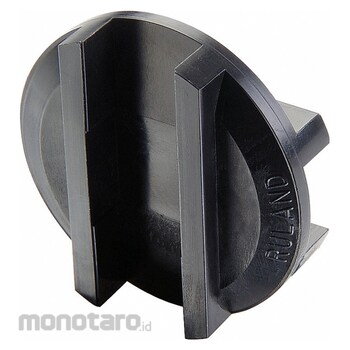

Oldham coupling discs feature slots on each side which accept the tenons from compatible hubs to complete the coupling system. The discs break away cleanly when maximum torque is exceeded, acting as a mechanical fuse to protect sensitive equipment.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Motion Control Coupling Angular Misalignment 0.5 Degrees Axial Motion 0.004 in Coupling Size OD19 OD12 Outside Diameter 3/4 in Over-Standard Parallel Misalignment 0.075 in Parallel Misalignment 0.008 in Break Torque 93 in-lb Disc Material Acetal Maximum Torque 20 in-lb Torsional Stiffness 23.3 in-lb/Deg System of Measurement Inch Maximum Speed 4 500 RPM For Hub Diameter 3/4 in Application Applications With High Parallel Misalignment (Up to 10 Percent of the Coupling OD)Ulasan Produk
