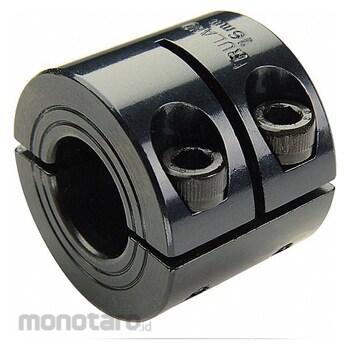

RULAND MANUFACTURING Double-Wide Shaft Collar
#Grup produk P109575814
Spesifikasi
| UNSPSC | 31162811 |
|---|---|
| Bore Diameter (inch) | 1 |
| Bore Tolerance (inch) | +0.002/+0.0005 |
| Bore Type | Round |
| Clearance Diameter (inch) | 2.03 |
| Collar Construction | 2-Piece |
| Collar Material | Carbon Steel |
| Collar Material Finish | Black Oxide |
| Collar Material Grade | 1215 |
| Collar Outside Diameter (inch) | 1-3/4 |
| Collar Width (inch) | 1-1/16 |
| For Shaft Diameter (inch) | 1 |
| Included Screws | (4) Hex Socket Cap Screw |
| Manufacturer Part Number | WSP-16-F |
| Maximum Operating Temperature (°F) | 350 |
| Minimum Operating Temperature (°F) | -40 |
| Screw Location from Center (inch) | 0.68 |
| Screw Material | Alloy Steel |
| Screw Material Finish | Black Oxide |
| Screw Seating Torque (lbs-inch) | 170 |
| Screw Thread Size | 1/4\"-28 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance (inch) | +0.0000/-0.0005 |
| Standards | ANSI; Conflict Minerals Compliant; ISO 9001:2015; REACH Compliant; RoHS Compliant |
| System of Measurement | Inch |
| Width Tolerance (inch) | +0.003/-0.010 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Two-piece double-wide shaft collars separate fully and install around a hard or soft shaft without marring or disassembly of equipment.
Feature
Shaft Collar System of Measurement Inch Bore Type Round Bore Diameter 1 in Bore Thread Size Not Applicable Collar Outside Diameter 1 3/4 in Inside Height to Flat Not Applicable Clearance Diameter 2.03 in Collar Width 1 1/16 in Collar Material Carbon Steel Keyway Width Not Applicable Collar Material Grade 1215 Keyway Depth Not Applicable Thread Direction Not Applicable Center to Lever Top Not Applicable Collar Construction 2-Piece Screw Material Alloy SteelUlasan Produk
