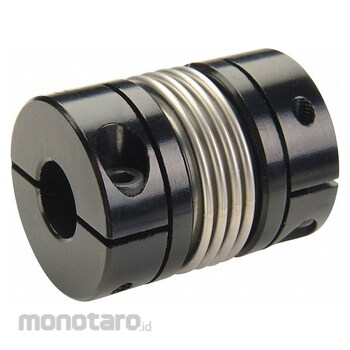

RULAND MANUFACTURING Bellow Shaft Coupling
#Grup produk P109575771
Sebelum PPN:
Rp3.099.900 - Rp4.199.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Application | Encoders; Stepper / Servo |
|---|---|
| Bellows Material | Stainless Steel |
| Bellows Material Finish | None |
| Bore Type | Round |
| Features | Balanced Design for Reduced Vibration; Lightweight and has Low Inertia; Zero Backlash |
| For Misalignment Type | Angular; Axial; Parallel |
| Full Bearing Support Required | Yes |
| Hub Material | Aluminium |
| Hub Material Grade | 2024 |
| Included Screws | (2) Hex Socket Cap Screw |
| Maximum Speed (rpm) | 10000 |
| Number of Locking Screws | 2 |
| Screw Material | Alloy Steel |
| Screw Material Finish | Black Oxide |
| Shaft Locking Type | Clamp On |
| Standards | Conflict Minerals Compliant; DIN 912 12.9 Screws; ISO 9001:2015; REACH Compliant; RoHS3 Compliant |
| Zero Backlash | Yes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Clamp-on bellows shaft couplings feature a slotted clamp on each end, secured with a socket cap screw to firmly attach the coupled shafts without marring. They are suitable for use in high speed stepper and servo applications.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Motion Control Coupling Bore Diameter 1 5/8 in Bore Diameter 2 5/8 in Coupling Outside Diameter 1.63 in Maximum Speed 10 000 RPM Maximum Torque 250 in-lb Hub Material Aluminum Overall Length 2 in Shaft Locking Type Clamp On System of Measurement Inch Clearance Diameter 1.63 in Bellows Material Stainless Steel Different Bore Sizes No Length Through Bore 1 0.95 in Length Through Bore 2 0.95 in Parallel Misalignment 0.01 in Bore Type Round Dynamic Torque Non-Reversing 125 lb-inUlasan Produk
