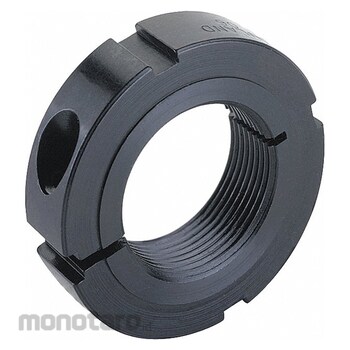

RULAND MANUFACTURING Bearing Locknut
#Grup produk P109575753
Spesifikasi
| UNSPSC | 31162811 |
|---|---|
| Bearing Face Maximum TIR (inch) | 0.0005 |
| Bore Type | Threaded Bore |
| Maximum Operating Temperature (°F) | 350 |
| Minimum Operating Temperature (°F) | -40 |
| Nut Construction | 1-Piece Clamp-On |
| Nut Locking Type | Clamping Socket Cap Screw |
| Nut Material | Carbon Steel |
| Nut Material Finish | Black Oxide |
| Nut Material Grade | 1215 |
| Resistance Properties | Corrosion Resistant |
| Screw Material | Alloy Steel |
| Screw Material Finish | Black Oxide |
| Screw Seating Torque (N m) | 9.5 |
| Screw Thread Size | M5x16 |
| Shaft Tolerance (inch) | +0.0000/-0.0005 |
| Standards | Conflict Minerals Compliant; REACH Compliant; RoHS3 Compliant |
| System of Measurement | Inch |
| Thread Spacing | Fine |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Bearing locknuts feature a slotted clamp design that secures the locknut in place once the desired torque is reached.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Shaft Collar Industry Standard Size N02 Bore Thread Size 0.586 in - 32 TPI Nut Outside Diameter 1 5/16 in Face Diameter 13/16 in Nut Width 3/8 in Bearing Face Maximum TIR 0.0005 in Nut Material Carbon Steel Nut Material Grade 1215 System of Measurement Inch Resistance Properties Corrosion Resistant Screw Location from Center 0.45 in Screw Material Alloy Steel Maximum Operating Temperature 350 Degrees F Minimum Operating Temperature -40 Degrees FUlasan Produk
