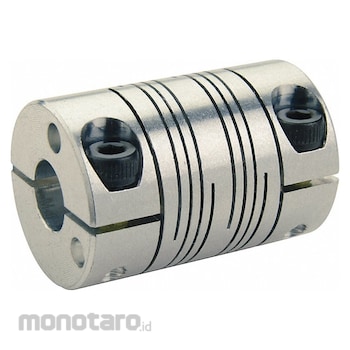

RULAND MANUFACTURING Beam Shaft Coupling
#Grup produk P109575735
Sebelum PPN:
Rp1.099.900 - Rp7.699.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Angular Misalignment (°) | 3 |
|---|---|
| Application | Light-Duty Power Transmission; Servo Motors to Lead Screws |
| Bore Type | Round |
| Coupling Material Finish | Bright |
| For Environment | Angular Misalignment; Axial Motion; Parallel Misalignment |
| For Misalignment Type | Angular; Axial; Parallel |
| Full Bearing Support Required | Yes |
| Included Screws | (2) Hex Socket Cap Screw |
| Maximum Speed (rpm) | 6000 |
| Number of Locking Screws | 2 |
| Screw Material Finish | Black Oxide |
| Shaft Locking Type | Clamp On |
| Zero Backlash | Yes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
General purpose clamp-on beam shaft couplings feature a slotted clamp on each end, secured with a socket cap screw to firmly attach the coupled shafts without marring. They are suitable for use in servo and stepper motors where zero backlash is required.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Motion Control Coupling Angular Misalignment 3 Degrees Bore Diameter 1 1/4 in Bore Diameter 2 1/4 in Coupling Material Aluminum Coupling Outside Diameter 5/8 in Maximum Speed 6 000 RPM Maximum Torque 13 in-lb Axial Motion 0.005 in Overall Length 1 in Parallel Misalignment 0.008 in System of Measurement Inch Different Bore Sizes No Torsional Stiffness 2.78 in-lb/Deg Bore Type Round Shaft Locking Type Clamp On Number of Beams 6 Length Through Bore 2 0.5 inUlasan Produk
