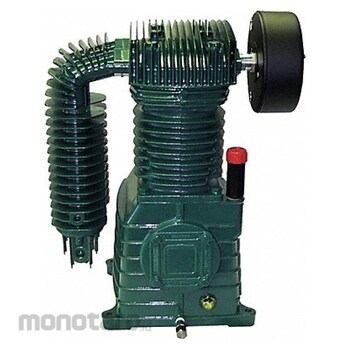

ROLAIR Air Compressor Pump
#Grup produk P109575638
Spesifikasi
| UNSPSC | 40151601 |
|---|---|
| Average Pump Life (hour) | 10000 |
| Bore Diameter (inch) | 2.04; 4.12 |
| Construction | Cast Iron |
| Flywheel Diameter (inch) | 15 |
| Flywheel Included | Yes |
| Free Air Flow Rate @ Maximum Pressure (cfm) | 19.1/24.0 @ 175psi |
| Groove Section | A |
| Lubrication Required | Yes |
| Lubrication Type | Splash Lubricated |
| Manufacturer Part Number | PMP22K30GR |
| Maximum Operating Pressure (psi) | 175 |
| Maximum Output Power (hp) | 7.5 |
| Number of Cylinders | 2 |
| Number of Grooves | 2 |
| Number of Stages | 2 |
| Oil Capacity (fl oz) | 47 |
| Outlet Connection Type | NPT |
| Outlet Size (inch) | 0.75 |
| Overall Depth (inch) | 17 |
| Overall Height (inch) | 20 |
| Overall Width (inch) | 14 |
| Pump Speed (rpm) | 1200 |
| Rotation | CCW |
| Stroke Length (inch) | 3-1/16 |
| Sub Brand | ROLAIR |
| Valve Material | Stainless Steel |
| Valve Type | Reed |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These air compressor pumps replace a pump in a Rolair air compressor.
Feature
Air Compressor Pump Lubrication Type Splash Lubricated Number of Stages 2 Maximum Output Power 7.5 hp Free Air Flow Rate @ Maximum Pressure 19.1/24.0 cfm @ 175 psi Number of Cylinders 2 Maximum Operating Pressure 175 psi Flywheel Diameter 15 in Flywheel Included Yes Pump Speed 1 200 RPM Construction Cast Iron Groove Section A Number of Grooves 2 Valve Type Reed Valve Material Stainless Steel Rotation CCW Stroke Length 3 1/16 inUlasan Produk
