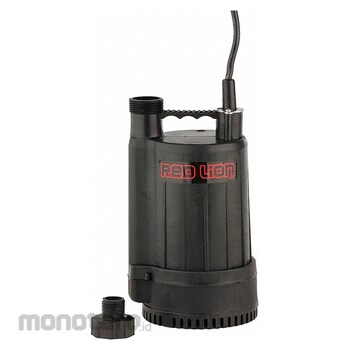

RED LION Pompa Celup Kuras Elektrik
#Grup produk P109575036
Spesifikasi
| UNSPSC | 40151512 |
|---|---|
| Agency Compliance | cCSAus |
| Amps (A) | 2.3 |
| Body Dia. (inch) | 6 |
| Body Material | Plastic |
| Cord Length (ft) | 8 |
| Discharge (inch) | 1 MNPT |
| Duty cycle | Continuous |
| Flow Rate @ 10ft. of Head (gpm) | 17.5 |
| Flow Rate @ 15ft. of Head (gpm) | 13.8 |
| Flow Rate @ 20ft. of Head (gpm) | 9.2 |
| Flow Rate @ 5ft. of Head (gpm) | 20 |
| Frequency (Hz) | 60 |
| Horsepower (HP) | 1/6 |
| Impeller Material | ABS |
| Manufacturer Part Number | 505950 |
| Max. Diameter Solids (inch) | 1/8 |
| Maximum Head (ft) | 25 |
| Maximum Liquid Temperature (°F) | 120 |
| Min. Sump Pit Dia. (inch) | 6 |
| Minimum Water Depth (inch) | 3/16 |
| Overall Height (inch) | 12 |
| Phase | 1 |
| Rated Voltage (V) | 120 AC |
| Rotation Speed (rpm) | 3600 |
| Shaft Seal Material - Pumps | Carbon; Ceramic |
| Switch Actuation | No Switch Included |
| Thermal Protection | Automatic |
| Width at Widest Point (inch) | 6-1/2 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These 110 to 120V plug-in utility and dewatering pumps transfer moderate amounts of water on jobsites. Some pumps come with a switch for automatic on/off operation, while other models allow installation of an automatic switch. They are compatible with most standard U.S. residential electrical wall outlets and have a Type A (two prongs, ungrounded) or Type B (three prongs, grounded) power cord plug.
Feature
Plug-In Utility Pump HP 1/6 Rated Voltage 120V AC Hz 60 Phase - Pumps 1 Amps 2.30 Switch Actuation No Switch Included Body Material Plastic Impeller Material ABS Shaft Seal Material - Pumps Carbon Ceramic Flow Rate @ 5 ft of Head 20 gpm Flow Rate @ 10 ft of Head 17.5 gpm Flow Rate @ 15 ft of Head 13.8 gpm Flow Rate @ 20 ft of Head 9.2 gpm Max Head 25 ft Min Sump Pit Dia 6 in Minimum Water Depth 3/16 in Body Dia 6 in Width at Widest Point 6 1/2 in Overall Height 12 inUlasan Produk
