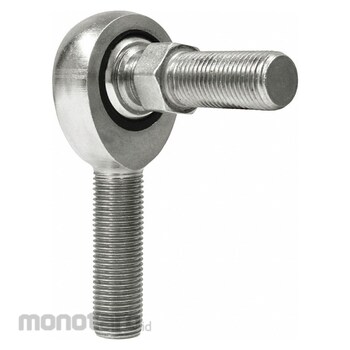

QA1 Male Spherical Rod End with Stud
#Grup produk P109574930
Spesifikasi
| UNSPSC | 31171508 |
|---|---|
| Ball Diameter (inch) | 1.125 |
| Ball Material | Alloy Steel |
| Ball Material Grade | 52100 |
| Ball Stud Center Length (inch) | 2-1/2 |
| Ball Stud Material | Carbon Steel |
| Ball Stud Thread Direction | Right Hand |
| Ball Stud Thread Length (inch) | 1-3/8 |
| Ball Stud Thread Size | 5/8\"-18 |
| Bore Diameter (inch) | 5/8 |
| Bore Diameter Tolerance (inch) | +0.0025/-0.0005 |
| Head Outside Diameter (inch) | 1-1/2 |
| Housing Material | Carbon Steel |
| Housing Material Finish | Chrome Plated |
| Inner Ring Width (inch) | 0.75 |
| Overall Length (inch) | 3-3/8 |
| Rod End Type | Spherical Rod End |
| Self Lubricating Bearing | Yes |
| Shank Thread Direction | Right Hand |
| Shank Thread Gender | Male |
| Shank Thread Length (inch) | 1-5/8 |
| Shank Thread Size | 5/8\"-18 |
| Standards | ISO Certified 9001 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These wear-resistant male spherical rod ends have an injection-molded nylon raceway that holds the studded bearing and is resistant to friction, wear, and moisture absorption. The carbon steel housing includes a corrosion-resistant coating. These rod ends are suitable for low load applications with moderate oscillation.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Spherical Rod End System of Measurement Inch Ball Stud Center Length 1 in Ball Stud Thread Length 3/8 in Ball Stud Thread Size #10-32 Bore Diameter 3/16 in Head Outside Diameter 5/8 in Head Width 0.25 in Shank Thread Length 3/4 in Shank Thread Size #10-32 Housing Material Carbon Steel Shank Thread Direction Right Hand Application Low Load Moderate Oscillation Ball Diameter 0.437 in Ball Material Alloy Steel Ball Material Grade 52100 Ball Stud Material Carbon SteelUlasan Produk
