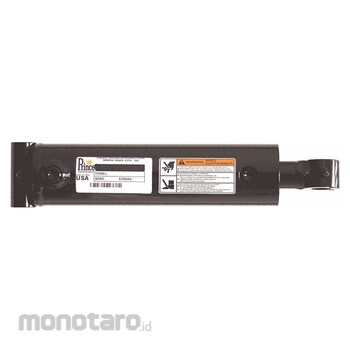

PRINCE Welded Hydraulic Cylinder
#Grup produk P109574639
Spesifikasi
| UNSPSC | 27121602 |
|---|---|
| Body Material | Steel |
| Bore Dia. (inch) | 4 |
| Column Load (lbs) | 16930 |
| Duty Rating | Standard Duty |
| Extended Length (inch) | 105 |
| Finish | Red Painted |
| Maximum Pressure (psi) | 2500 |
| Pin Dia. (inch) | 1-17/64 |
| Piston Material | Ductile Iron |
| Piston Rod Material | Chrome Plated |
| Piston Seal Type | Cast Iron |
| Port Size (inch) | 1/2 NPTF |
| Retracted Length (inch) | 57 |
| Ring Material | Cast Iron |
| Rod Dia. (inch) | 2 |
| Rod Seal Type | Urethane U-cup |
| Single Acting/Double Acting | Double Acting |
| Stroke Length (inch) | 48 |
| Tubes | Heavy-wall Honed Steel |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Standard-duty welded hydraulic cylinders are used in systems up to 2500 psi. Welded hydraulic cylinders are used in rugged industrial applications, such as metal fabrication and waste and recycling facilities.
Feature
Welded Hydraulic Cylinder Double Acting Bore Dia 4 in Stroke Length 48 in Rod Dia 2 in Retracted Length 57 in Extended Length 105 in Port Size 1/2 in NPTF Max Pressure 2 500 psi Temp Range - Ductile Iron Piston Material Chrome Plated Piston Rod Material Cast Iron Ring Material Heavy-wall Honed Steel Tubes - Wear Band Urethane U-cup Rod Seal Type Steel Body Material - Tie Rods Cast Iron Piston Seal Type Red Painted Finish - Standards Includes - Pin Dia 1 17/64 inUlasan Produk
Tidak ada ulasan
