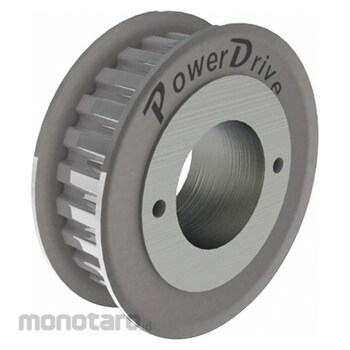

POWER DRIVE L Series Timing Belt Pulley
#Grup produk P109573791
Spesifikasi
| UNSPSC | 31171804 |
|---|---|
| For Belt Series | L |
| For Belt Trade Size | L |
| For Bushing Type | Split Taper |
| For Maximum Horsepower (HP) | 4 |
| Material | Steel |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
L series bushed-bore timing belt pulleys need a bushing to mount to the drive shaft and adapt the bore, or center hole, to the shaft size. L series timing belt pulleys have trapezoidal tooth-shaped grooves that deliver low to moderate amounts of torque. These pulleys must be matched with an L series timing belt of the same top width and pitch.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Gearbelt Pulley For Belt Series L For Belt Width 1/2 in For Bushing Size G For Bushing Type Split Taper Material Steel Maximum Bore Diameter 1 in Minimum Bore Diameter 3/8 in Number of Teeth 18 Outside Diameter 2.438 in Pitch 3/8 in Pitch Diameter 2.149 in Face Diameter 2.12 in Face Width 0.75 in For Belt Trade Size L For Maximum Horsepower 4 hp Length through Bore 1 in Overall Width 1 3/8 in Pulley Construction PlainUlasan Produk
