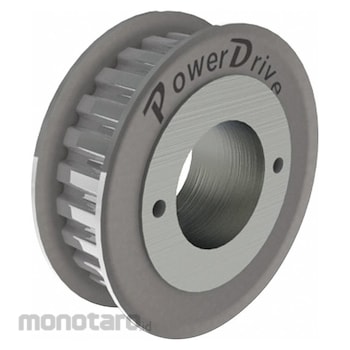

POWER DRIVE H Series Timing Belt Pulley
#Grup produk P109573755
Sebelum PPN:
Rp1.099.900 - Rp4.899.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 31171804 |
|---|---|
| For Belt Series | H |
| For Belt Trade Size | H |
| For Belt Width (inch) | 1 |
| For Bushing Type | Split Taper |
| For Maximum Horsepower (HP) | 20 |
| Material | Steel |
| Pulley Construction | Plain |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
H series bushed-bore timing belt pulleys need a bushing to mount to the drive shaft and adapt the bore, or center hole, to the shaft size. H series timing belt pulleys have trapezoidal tooth-shaped grooves that deliver low to moderate amounts of torque. These pulleys must be matched with an H series timing belt of the same top width and pitch.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Gearbelt Pulley For Belt Series H For Belt Width 1 in For Bushing Size G For Bushing Type Split Taper Material Steel Maximum Bore Diameter 1 in Minimum Bore Diameter 3/8 in Number of Teeth 14 Outside Diameter 2.438 in Pitch 1/2 in Pitch Diameter 2.228 in Face Diameter 2.17 in Face Width 1.25 in For Belt Trade Size H For Maximum Horsepower 20 hp Length through Bore 1 in Overall Width 1 7/8 in Pulley Construction PlainUlasan Produk
