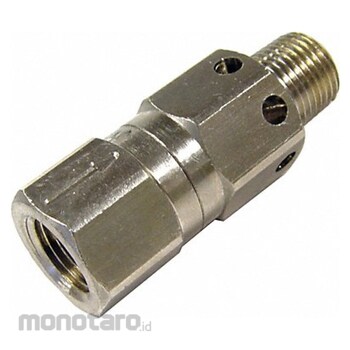

PNEUMADYNE INC Quick Exhaust Valve for Air Cylinder
#Grup produk P109573472
Spesifikasi
| UNSPSC | 40141638 |
|---|---|
| Air Inlet Size (inch) | 1/8 |
| Air Inlet Type | NPT |
| Air Outlet Gender | Female |
| Air Outlet Size (inch) | 1/8 |
| Air Outlet Type | NPT |
| Body Material Finish | Nickel Plated |
| Coefficient of Volume (cfm) | 0.2 |
| Manufacturer Part Number | C570501 |
| Maximum Operating Pressure (psi) | 125 |
| Maximum Operating Temperature (°F) | 160 |
| Minimum Operating Pressure (psi) | 0 (zero) |
| Minimum Operating Temperature (°F) | -20 |
| Overall Length (inch) | 1-9/16 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Quick exhaust valves for air cylinders allow compressed air to rapidly escape an air cylinder for faster motion in repetitive operations.
Feature
Quick Exhaust Maximum Operating Pressure 125 psi Minimum Operating Pressure 0 psi Inlet Size 1/8 in Air Inlet Type NPT Air Outlet Size 1/8 in Air Outlet Type NPT Coefficient of Volume 0.2 cfm Inlet Gender Male Air Outlet Gender Female Body Material Finish Nickel Plated Maximum Operating Temperature 160 Degrees F Minimum Operating Temperature -20 Degrees F Body Material Brass with Electroless Nickel Overall Length 1 9/16 inUlasan Produk
