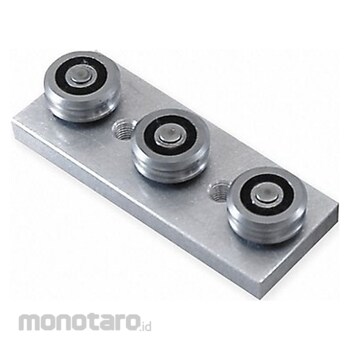

PBC LINEAR Heavy-Duty Linear Cam Roller Bearing
#Grup produk P109572774
Spesifikasi
| UNSPSC | 23153030 |
|---|---|
| Bearing Style | Roller |
| Carriage Finish | Clear Anodized |
| Carriage Height (inch) | 0.823 |
| Carriage Length (inch) | 4.5 |
| Carriage Material | Aluminium |
| Carriage Mounting Hole Size | .312\"-24 |
| Carriage Width (inch) | 1.5 |
| Dynamic Load Capacity (lbf) | 1032 |
| For Rail Size | Size 18 |
| For use with | Redi-Rail Slides |
| Manufacturer Part Number | RRS18 |
| Maximum Operating Temperature (°F) | 180 |
| Maximum Speed (in/s) | 160 |
| Minimum Operating Temperature (°F) | 0 (zero) |
| Number of Rollers | 3-Roller Assembly |
| Overall Height (inch) | 1.125 |
| Product Type | Gothic |
| Roller Finish | Polished |
| Roller Material | 52100 Steel |
| Series | Redi-Rail |
| Static Load Capacity (lbf) | 232 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These roller carriages pair with Redi-Rail guide rails. Their sealed, prelubricated rollers have a gothic arch profile that provides more roller-to-rail contact than straight rails. They are suited for use in industrial and dirty environments.
Feature
Linear Slide Roller Carriage Carriage Height 1 1/2 in Carriage Width 0.823 in Carriage Length 4 1/2 in Carriage Material Aluminum Roller Material 52100 Steel Agency Compliance - Carriage Finish Clear Anodized Carriage Type Roller Dimension B - Dimension B1 - Dimension B2 - Dimension F - Dimension F1 - Dimension F2 - Dimension F3 - Dimension G - Dimension G1 - Dimension G2 - Dimension J - Dimension J1 - Dimension L - Dimension L1 - Dimension L2 - Dimension L3 -Ulasan Produk
