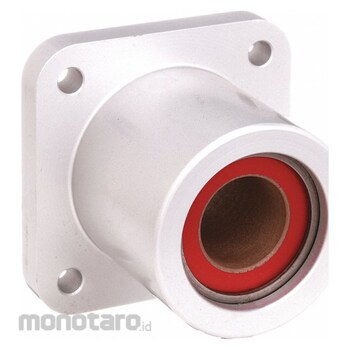

PBC LINEAR Flange-Mount Linear Plain Bearing
#Grup produk P109572756
Spesifikasi
| UNSPSC | 31171506 |
|---|---|
| Accelerated Speed (fps) | 14 |
| Bearing Type | Plain |
| Body Width (inch) | 2.25 |
| Bolt Size (inch) | 1/4 |
| Dynamic Load Capacity (lbf) | 7050 |
| Flange Thickness (inch) | 0.5 |
| Flange Width (inch) | 2.75 |
| Housing Style | Single |
| Inside Diameter (inch) | 1 |
| Liner | Frelon Gold |
| Locking Type | Retaining Ring |
| Lubrication | No Lubrication System |
| Manufacturer Part Number | SFP16 |
| Material | Aluminium |
| Maximum Operating Temperature (°F) | 400 |
| Minimum Operating Temperature (°F) | -400 |
| Mounting Hole Diameter (inch) | 0.28125 |
| Overall Height (inch) | 2-3/4 |
| Overall Length (inch) | 2-13/16 |
| Retaining Ring | External |
| Self-Alignment | Self-Aligning |
| Series | Simplicity |
| Static Load Capacity (lbf) | 3810 |
| Steady State Speed (fps) | 5 |
| System of Measurement | Inch |
| Type | Square Flanged |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These self-aligning flanged linear plain bearings keep shafts stable during operation to prevent misalignment, shaft deflection, and inaccurate movement.
Feature
Mounted Linear Bearing Inside Dia 1 in Material Aluminum Accelerated Speed 14 fps Bearing Type Plain Body Width (In.) 2.25 in Bolt Size 1/4 in Dimension a 1 in Dimension A (In.) - Dimension B 2.75 in Dimension B (In.) - Dimension C 2.125 in Dimension C (In.) - Dimension d 2.25 in Dimension D (In.) - Dimension E 0.5 in Dimension E (In.) - Dimension F 0.25 inUlasan Produk
