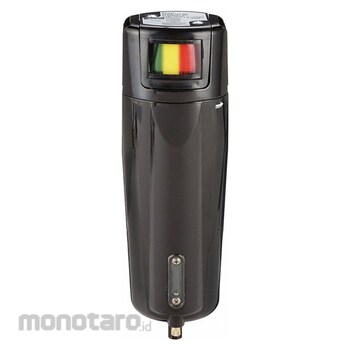

Parker Sterile Compressed Air Filter
#Grup produk P109572598
Spesifikasi
| UNSPSC | 40161511 |
|---|---|
| Air Inlet Size (inch) | 3/4 |
| Air Inlet Type | NPT |
| Air Outlet Size (inch) | 3/4 |
| Air Outlet Type | NPT |
| Connection Style | Main Line |
| Drain Included | Yes |
| Drain Type | Automatic |
| Filter Bowl Material | Steel |
| Filter Efficiency (%) | 93 |
| Filter Element Material | Borosilicate Glass Microfibers |
| Filter Rating (micron) | 0.01 |
| Filter Type | Coalescing |
| For Fluid Type | Oil; Water |
| For Substance Type | Dirt; Oil; Water |
| Includes | Auto Drain; Differential Pressure Indicators; High Efficiency Coalescing Filter |
| Manufacturer Part Number | 8206N-1A1-DX |
| Maximum Flow @ 100psi (scfm) | 259 |
| Maximum Flow Rate (CFM) | 596 |
| Maximum Operating Pressure (psi) | 250 |
| Maximum Operating Temperature (°F) | 130 |
| Minimum Flow Rate (scfm) | 37 |
| Minimum Operating Pressure (psig) | 15 |
| Number of Air Inlets | 1 |
| Number of Air Outlets | 1 |
| Overall Height (inch) | 13 |
| Overall Width (inch) | 4 |
| Pressure Drop (psi) | 10 |
| Seal Material | Buna-N |
| Series | 8000 |
| Standards | FDA Approved; USDA Accepted |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These individual units are intended to replace air filters in a 3-stage air filter assembly. The filter efficiency rating determines the order of placement with the highest efficiency rating placed last.
Feature
Pneumatic Oil Filter Filter Type Coalescing Air Inlet Size 3/4 in Air Inlet Type NPT Maximum Flow Rate 596 cfm Maximum Operating Pressure 250 psi Maximum Operating Temperature 130 Degrees F Overall Width 4 in Overall Height 13 in Drain Included Yes Filter Bowl Material Steel Drain Type Automatic Series 8000 Air Outlet Size 3/4 in Air Outlet Type NPT Filter Efficiency 93 Percent Filter Element Material Borosilicate Glass Microfibers Filter Rating 0.01 micronUlasan Produk
