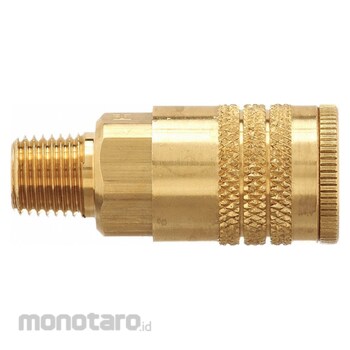

Parker ARO Quick-Connect Air Coupling
#Grup produk P109571410
Spesifikasi
| UNSPSC | 27131613 |
|---|---|
| Barbed | No |
| Body Size (inch) | 1/4 |
| Connection Type | NPT |
| Coupling Component | Socket |
| Coupling Locking Type | Sleeve |
| Fitting Type | MNPT |
| Hose Fitting Gender | Male |
| Hose Fitting Size (inch) | 1/2 |
| Includes Valve | Yes |
| Interchange Type | ARO |
| Material | Brass |
| Max. Outside Dia. (inch) | 7/8 |
| Maximum Flow Rate (L/minute) | 707.92 |
| Maximum Working Pressure at 70°F (psi) | 300 |
| Overall Length (inch) | 2-1/16 |
| Seal Material | Nitrile |
| Temperature Range (°F) | -40 to 250 |
| Thread Size (inch) | 1/4\"-18 |
| Valve Type | Tubular |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
ARO brass quick-connect air coupling bodies are the female end of coupling sets. Also called sockets, they accept coupling plugs (nipple or male ends) for use with pneumatic lines. Brass, an alloy of copper and zinc, is strong, highly conductive, and resists corrosion. Brass is softer than other metal plugs and sockets for better threading together. Compatible with copper or zinc piping, brass maintains its durability and machineability at high temperatures.
Feature
Quick Connect Hose Coupling ARO Brass Socket Male NPT Coupling Size 1/4 inUlasan Produk
