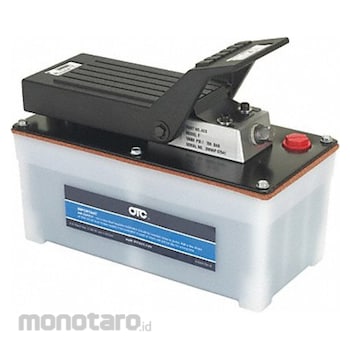

OTC Air-Operated Hydraulic Pump Unit
#Grup produk P109571119
Spesifikasi
| UNSPSC | 40151533 |
|---|---|
| Actuation Type | Foot |
| Air Intake Connection Size (inch) | 1/4 |
| Air Intake Connection Type | FNPT |
| Control Valve Type | 2-Position |
| Displacement at 10000 Psi (cu.inch/minute) | 4 |
| Displacement at 5000 Psi (cu.inch/minute) | 30 |
| Features | Ergonomic Design; Pedal Lock Function; Pressure Relief Valve |
| Manufacturer Part Number | 4020 |
| Max. Air Consumption (scfm) | 20 |
| Max. Air Intake Pressure (psi) | 100 |
| Maximum Flow Rate (cu.in/minute) | 4 |
| Maximum Operating Pressure (psi) | 10000 |
| Maximum Sound Level (dBA) | 85 |
| Media Intake Connection Size (inch) | 3/8 |
| Overall Height (inch) | 8.9 |
| Overall Length (inch) | 10.4 |
| Overall Width (inch) | 5.4 |
| Reservoir Capacity (cu.in) | 98 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Low-flow air-operated hydraulic pump units reach flow rates of up to 10 cubic inches per minute. Low-flow pumps are suited for light-duty applications, such as operating tools and equipment with single-acting hydraulic cylinders typically found in lifts.
Feature
Hydraulic Pump Reservoir Capacity 98 cu in Air Intake Pressure - Maximum 100 psi Air Intake Connection Size 1/4 in Operating Pressure - Maximum 10 000 psi Displacement @ 5000 psi 30 cu in/min Displacement @ 10 000 PSI 4 cu in/min Sound Level - Maximum 85 dBA Control Valve Type 2-Position Actuation Type Foot Air Consumption - Maximum 20 scfm Air Intake Connection Type FNPT Features Ergonomic Design Pedal Lock Function Pressure Relief Valve Flow Rate - Maximum 4 cu in/minUlasan Produk
